Overview

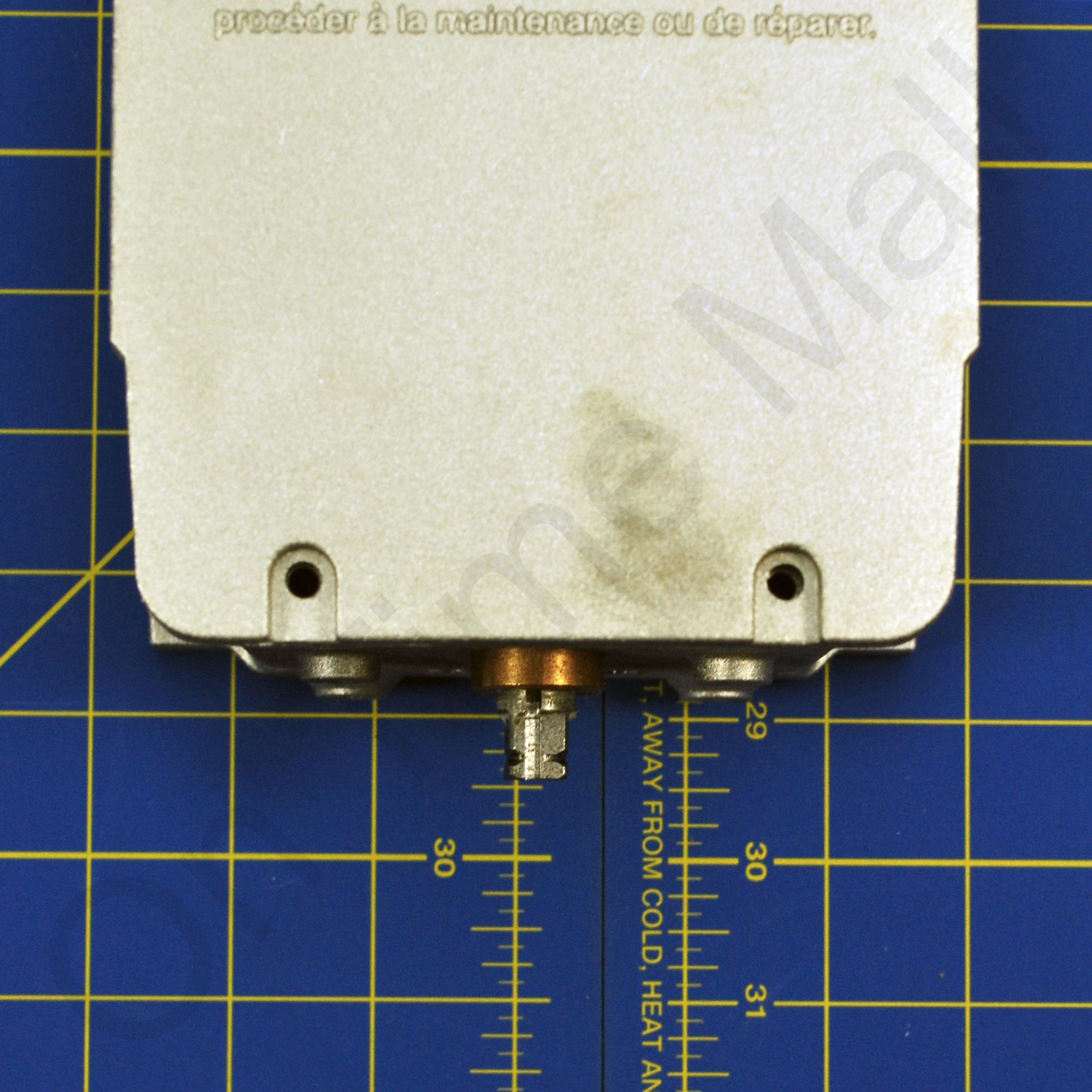

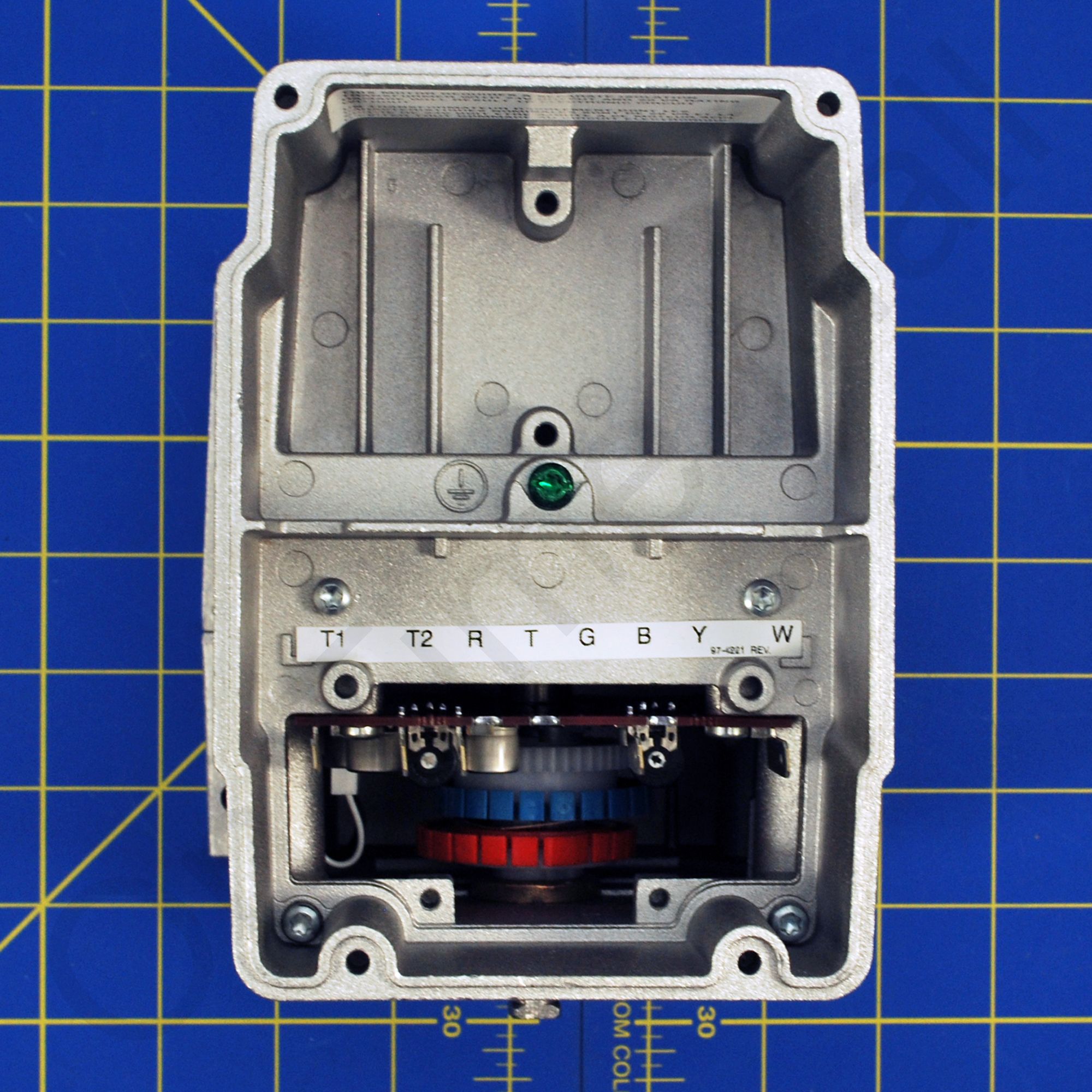

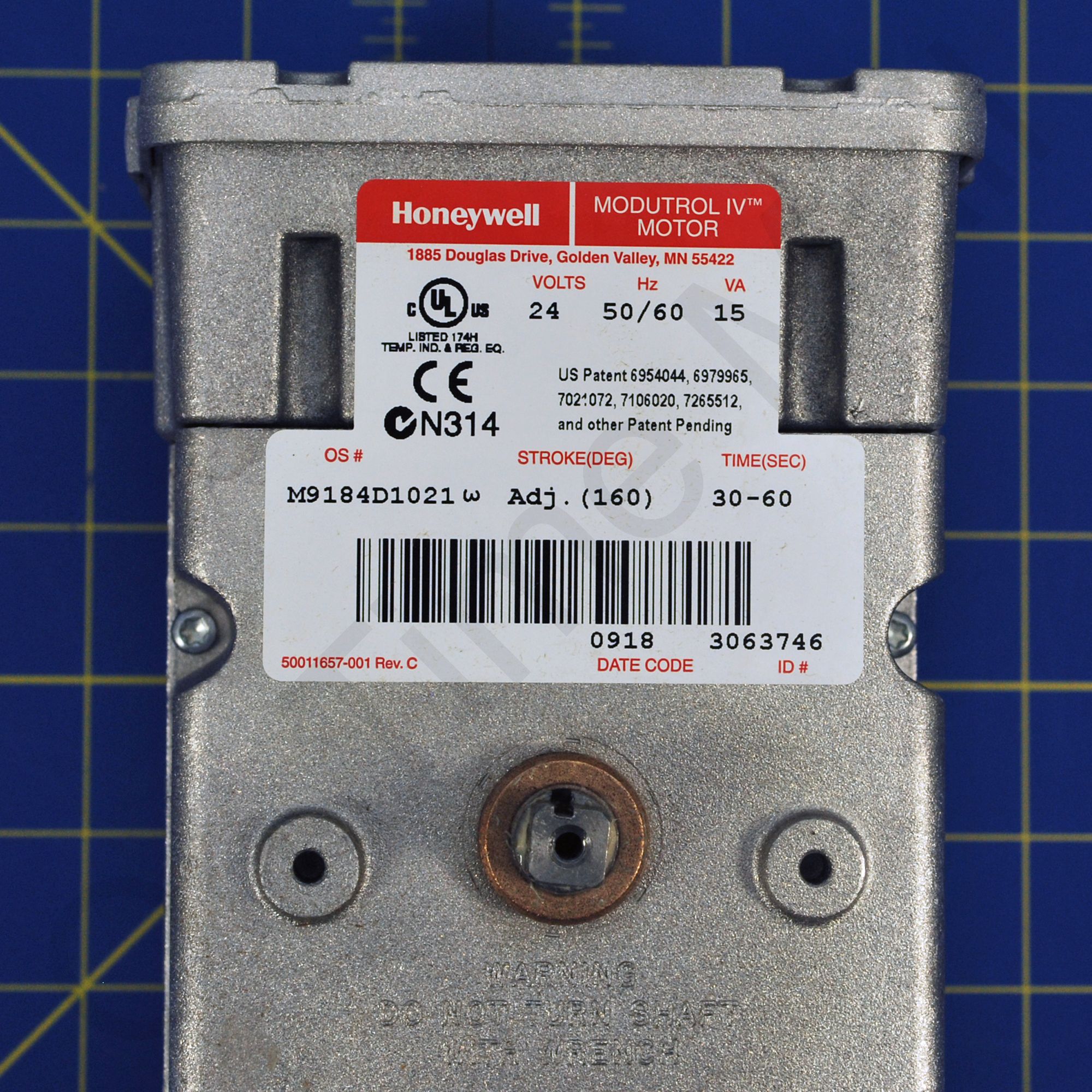

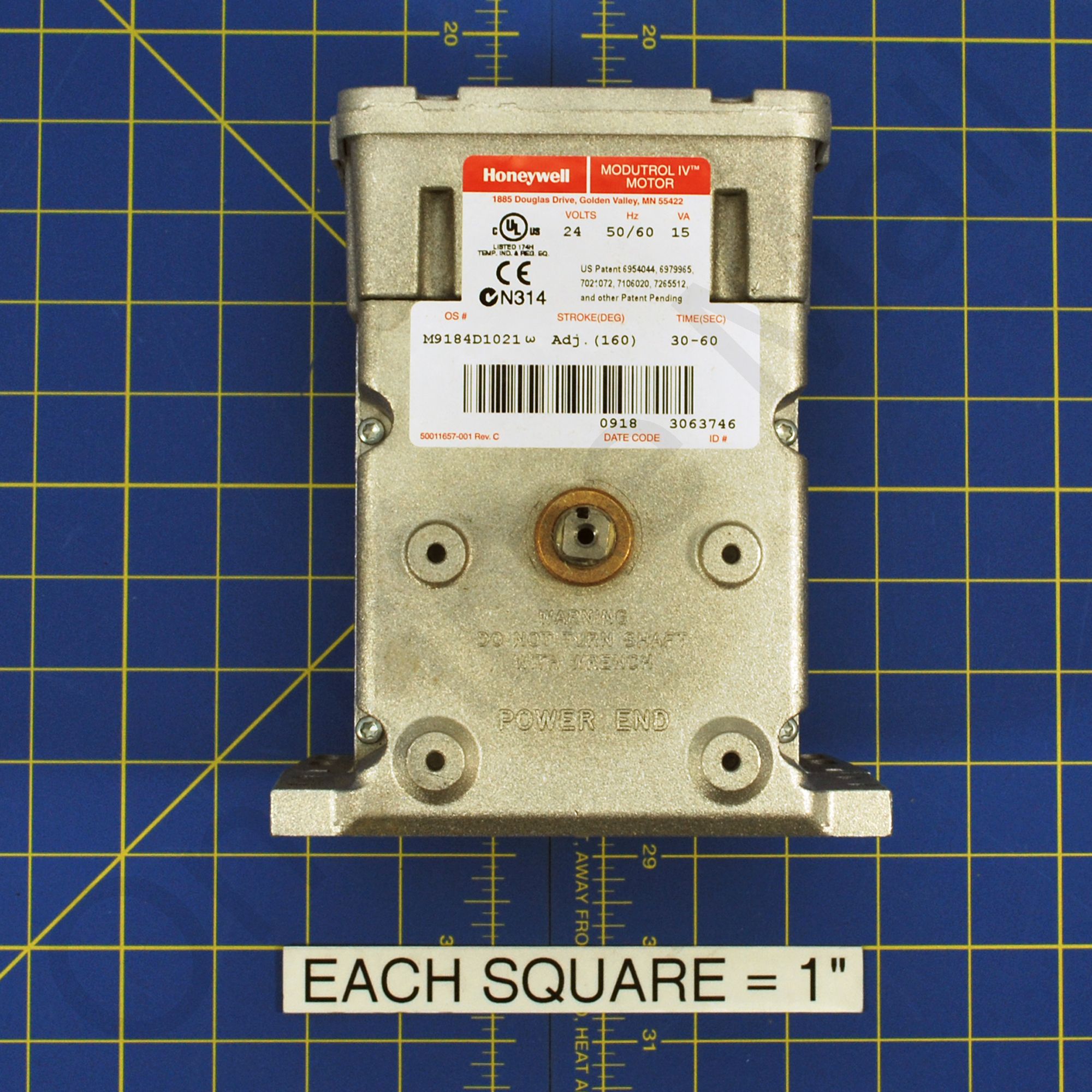

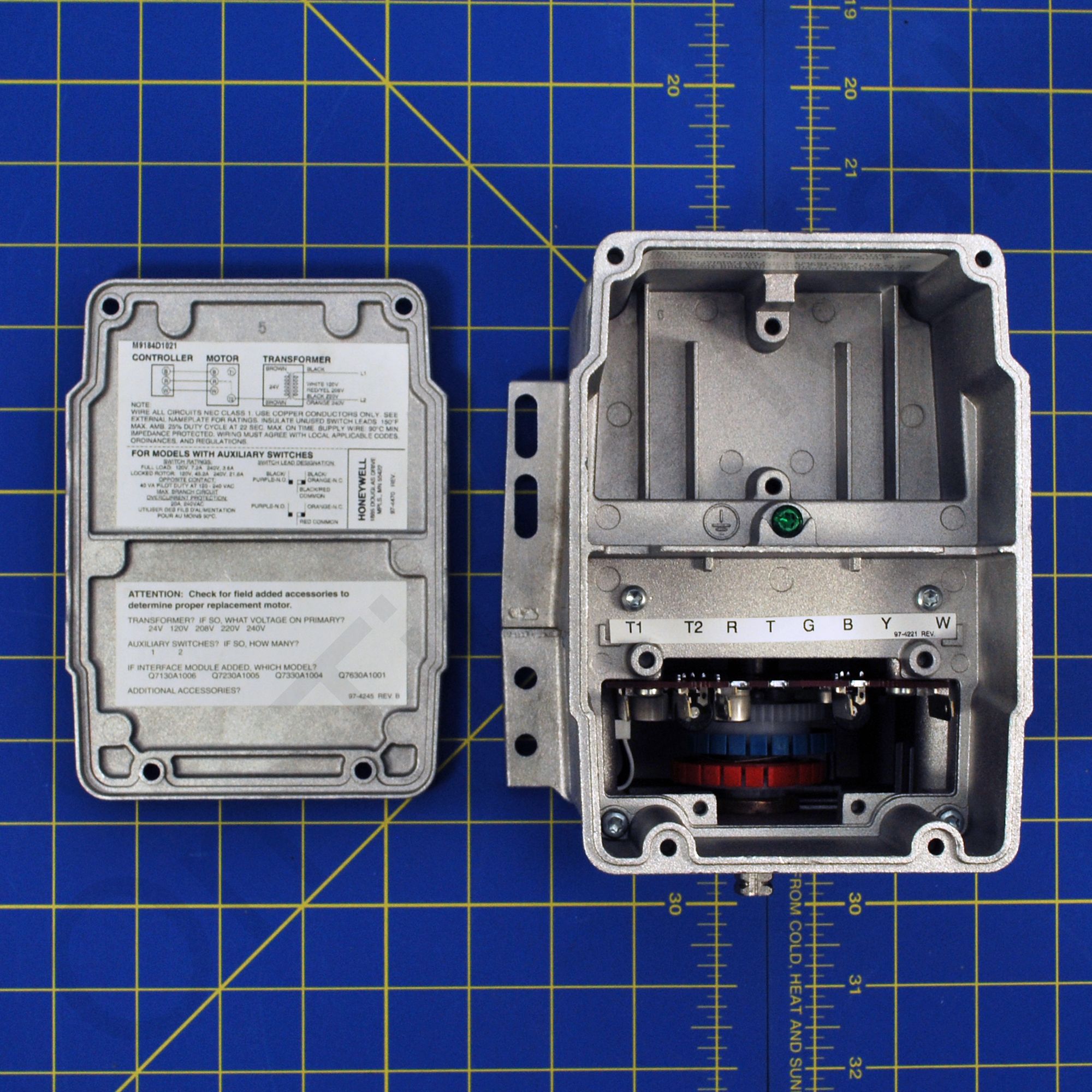

Honeywell M9184D1021 Foot Mounted Actuator. Series 90 Modutrol IV Motors non-spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or valves. The integral junction box provides NEMA 3 weather protection if the motor is mounted in the upright position. Motor and circuitry operate from 24 Vac. Quick-connect terminals are standard; a screw terminal adapter is available. An adapter bracket for matching the shaft height of older motors is available. Motors have field adjustable stroke (90 to 160 degrees). Integral auxiliary switches are available factory-mounted or can be field-added. All models have dual shafts (slotted and tapped on both ends). All models have auxiliary switch cams. Fixed torque throughout the entire voltage range. Direct replacement for M9184D1013 and M904E75DS8. This may require a 220738A adapter bracket to be used as well. Consult the literature for the items in question if you are unsure.

Specifications

More Information
Manufacturer Honeywell
Product Type Replacement Part
