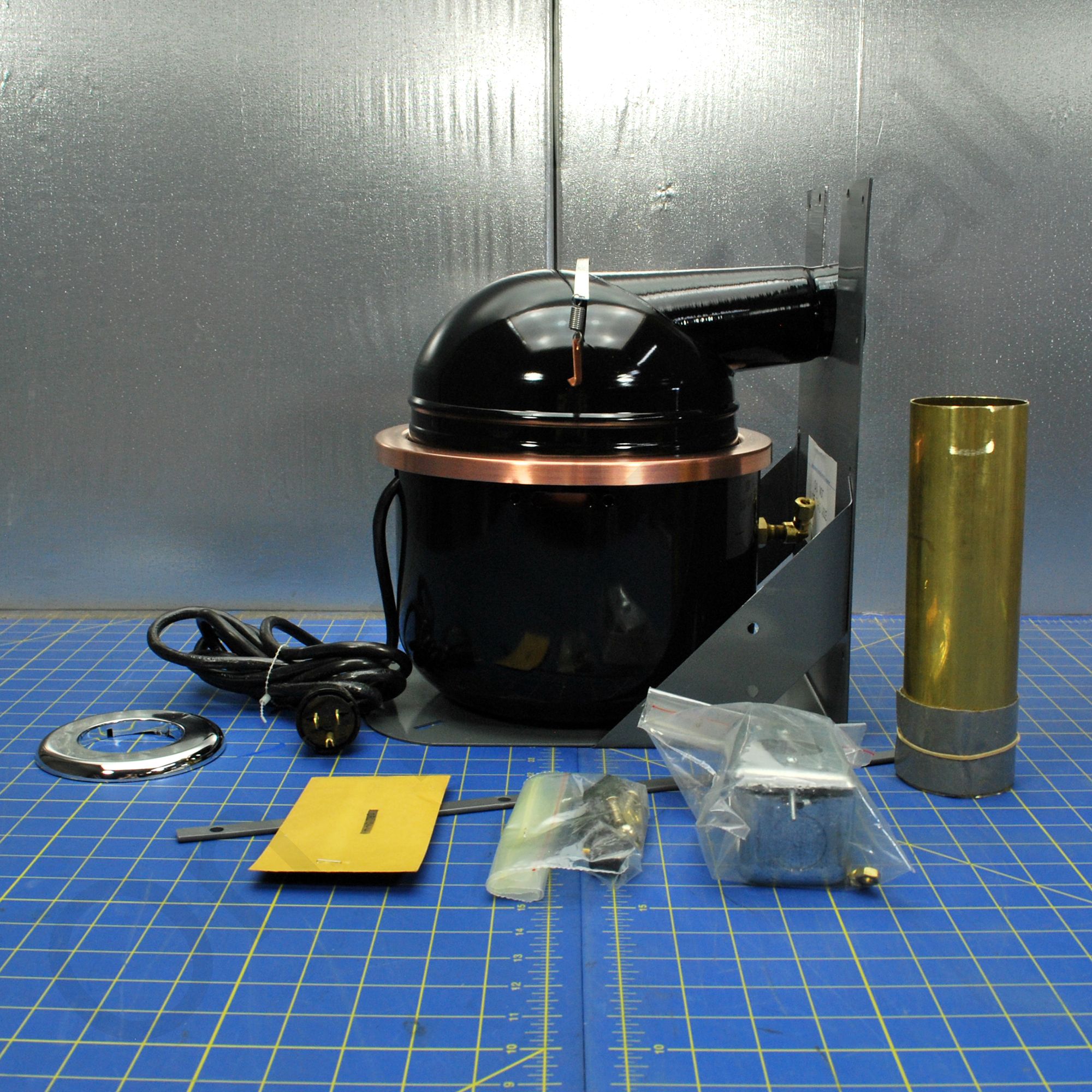

Walton WF-HH-229 Atomizing Humidifier

SKU#: WFHH229
List Price: $9,999.99 Sale Price: $9,999.99
Product Description

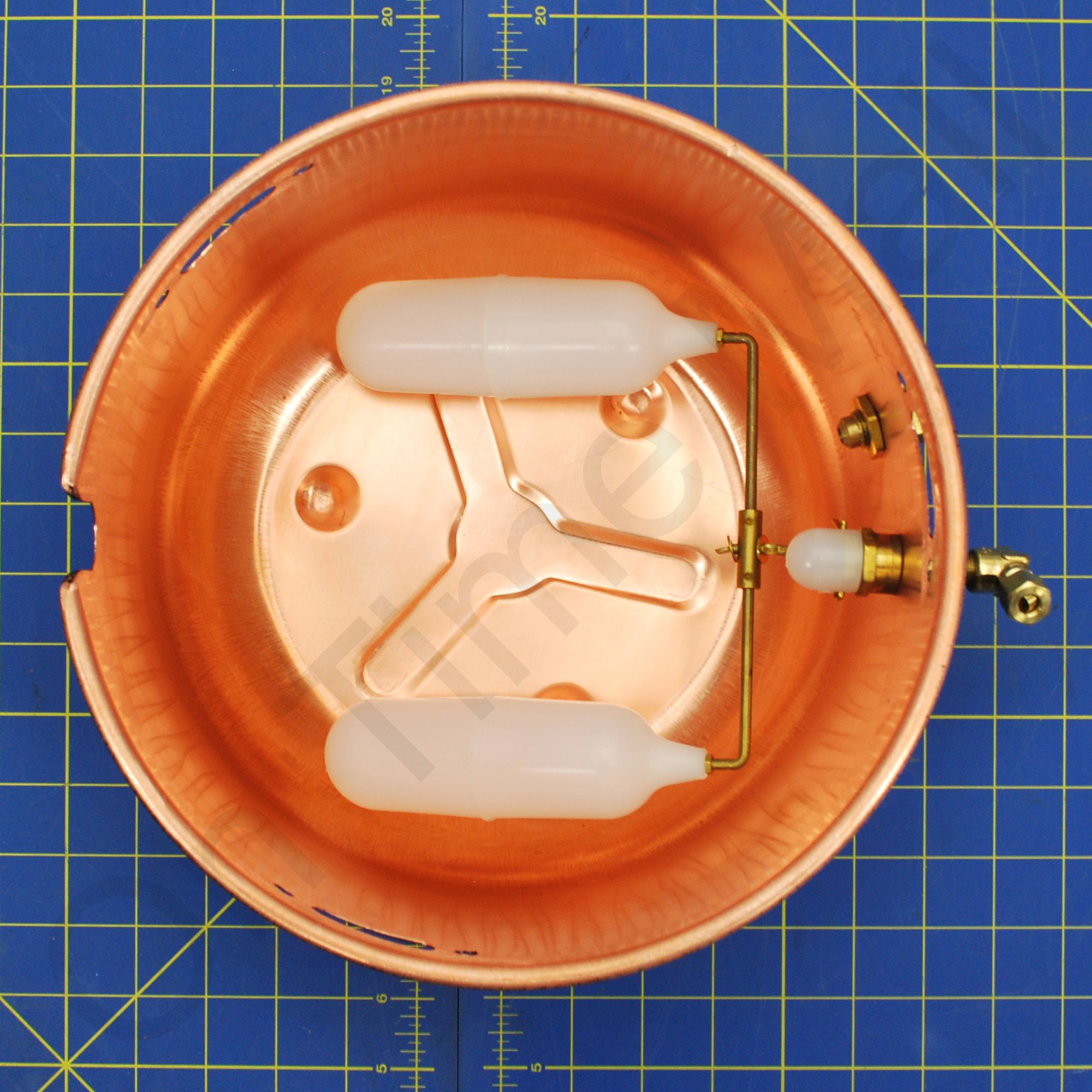

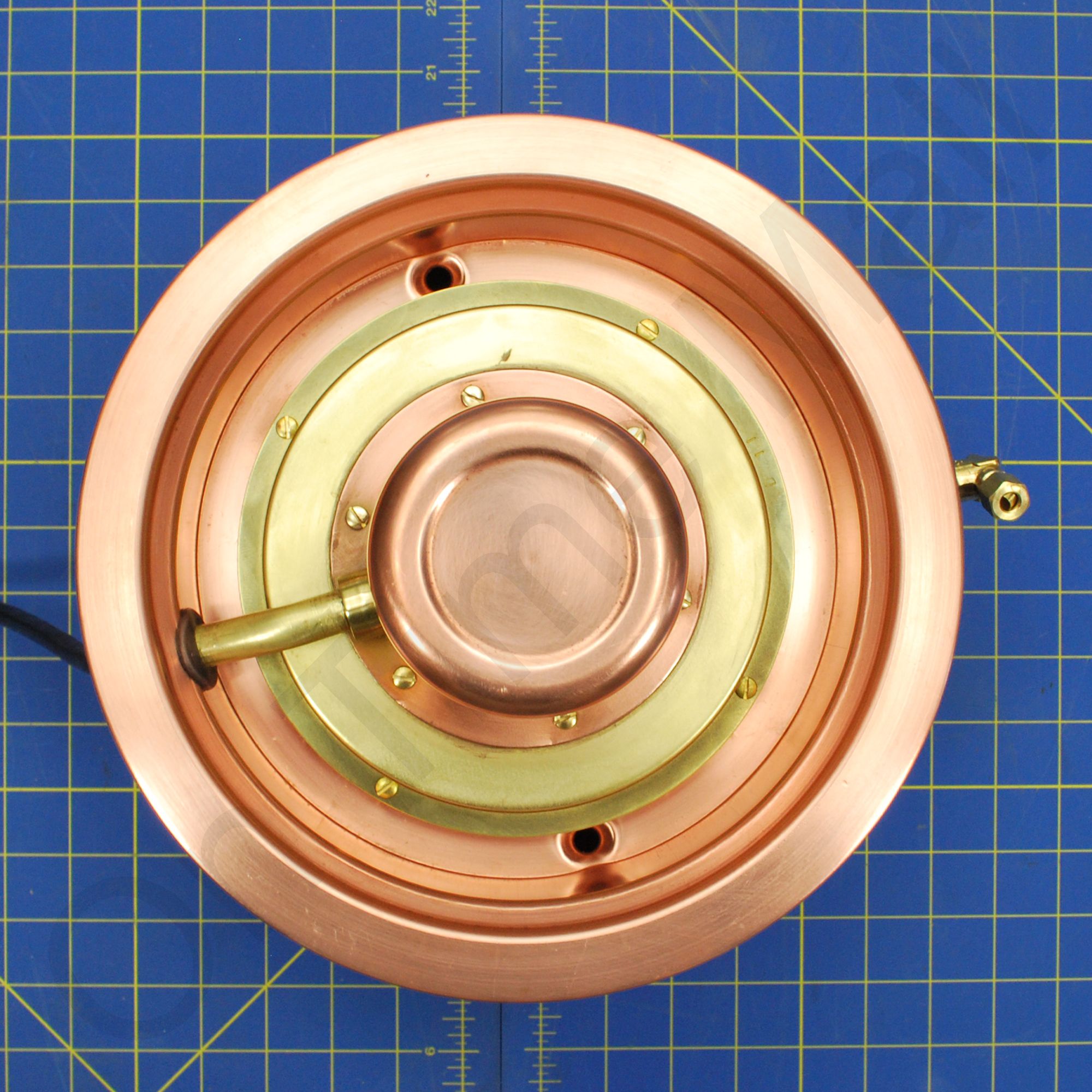

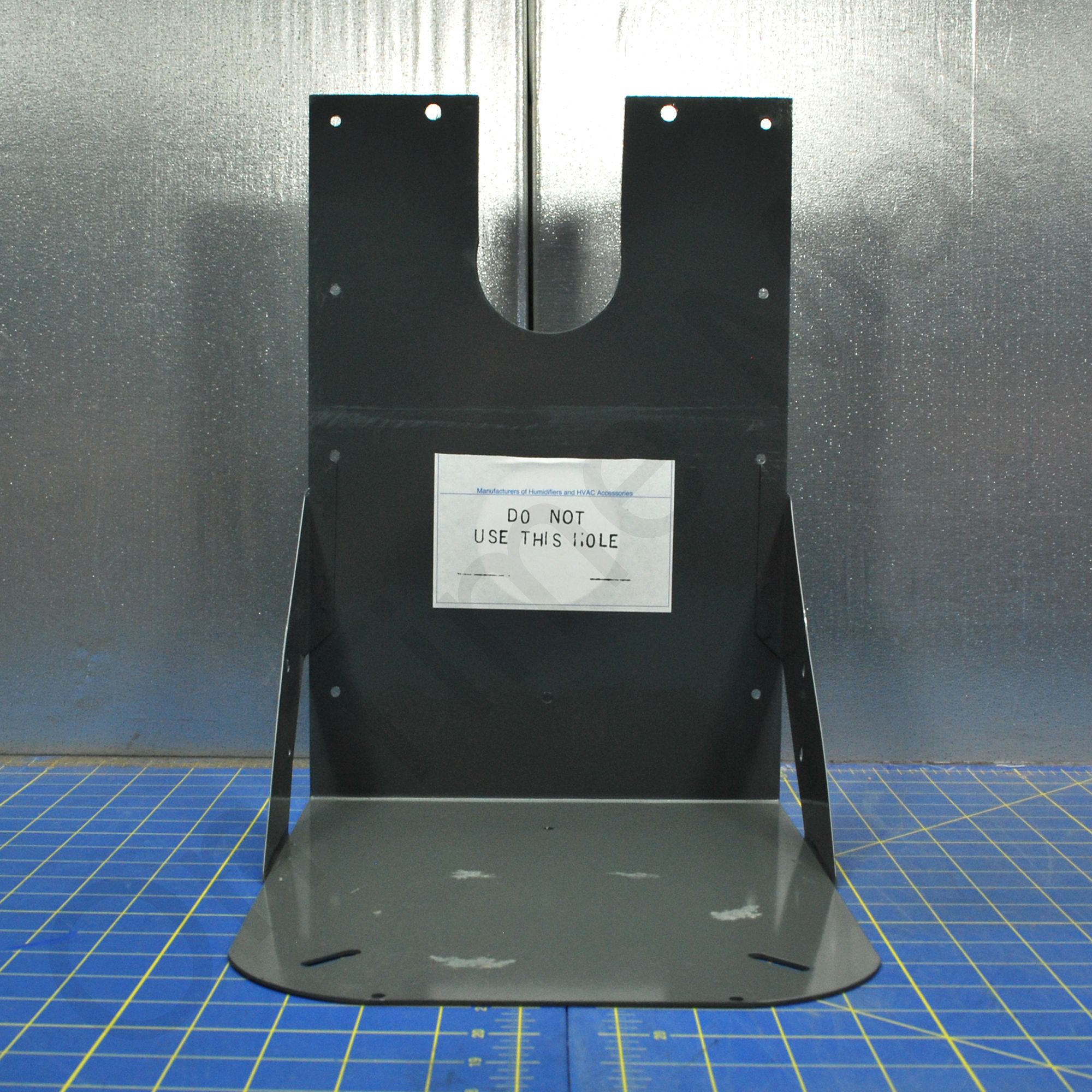

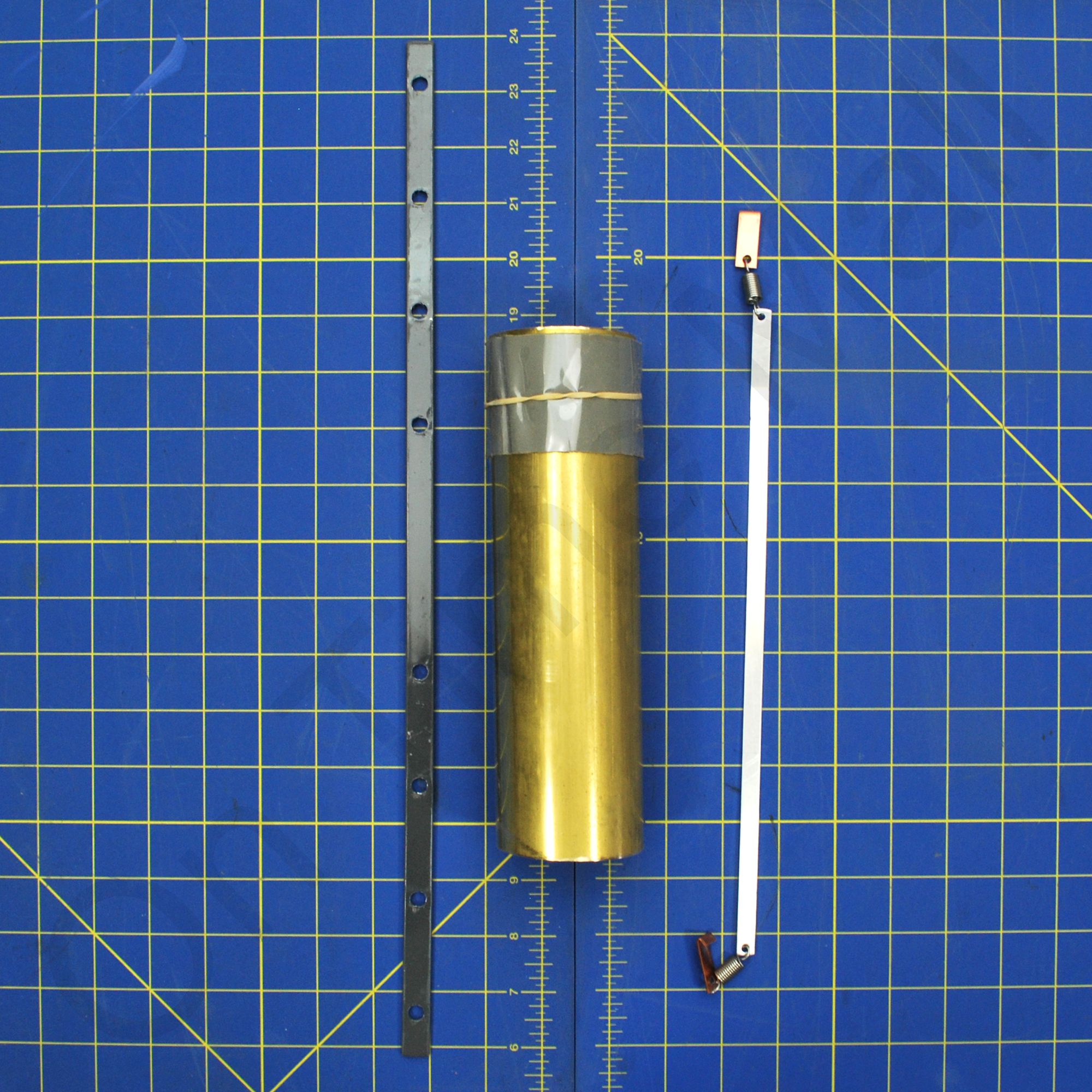

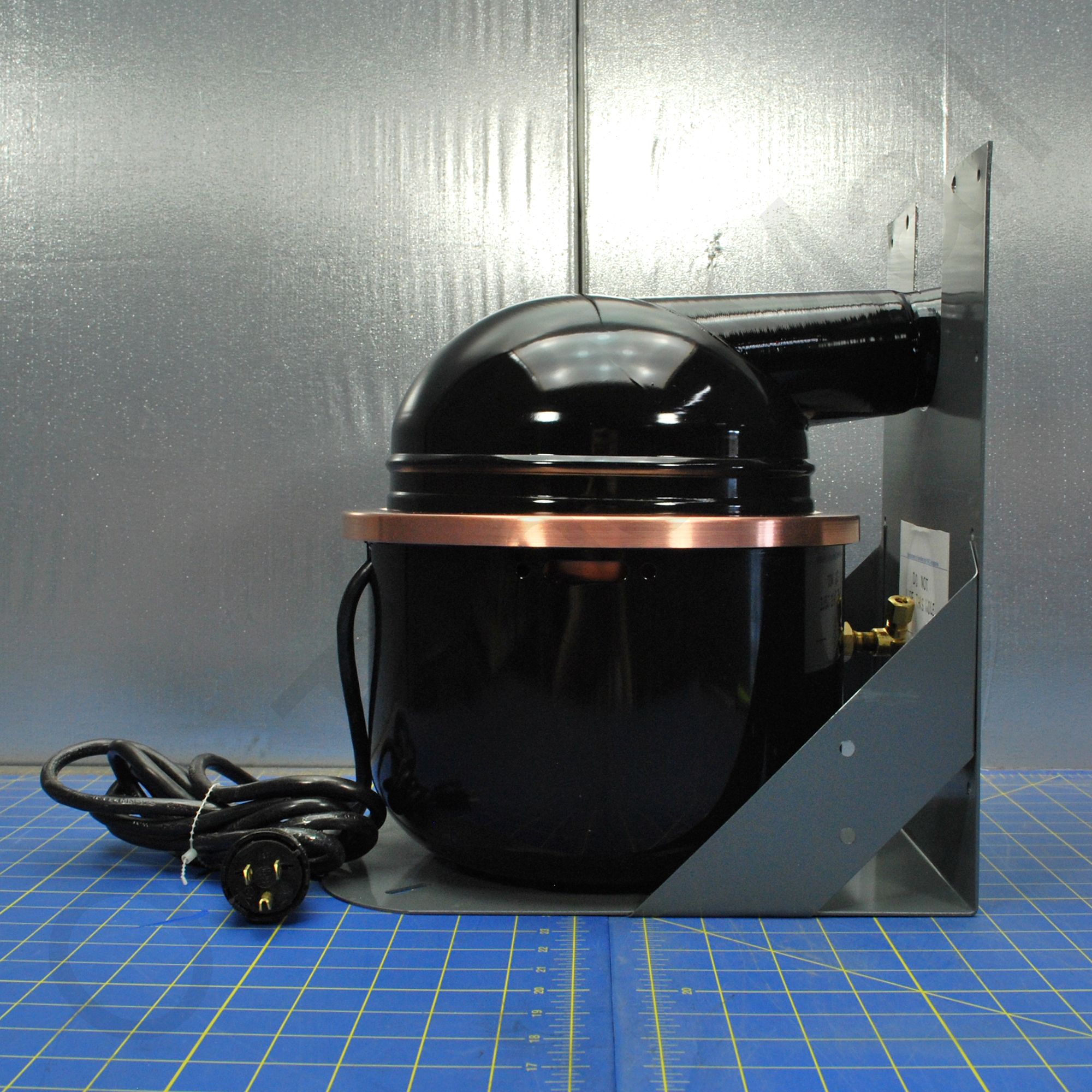

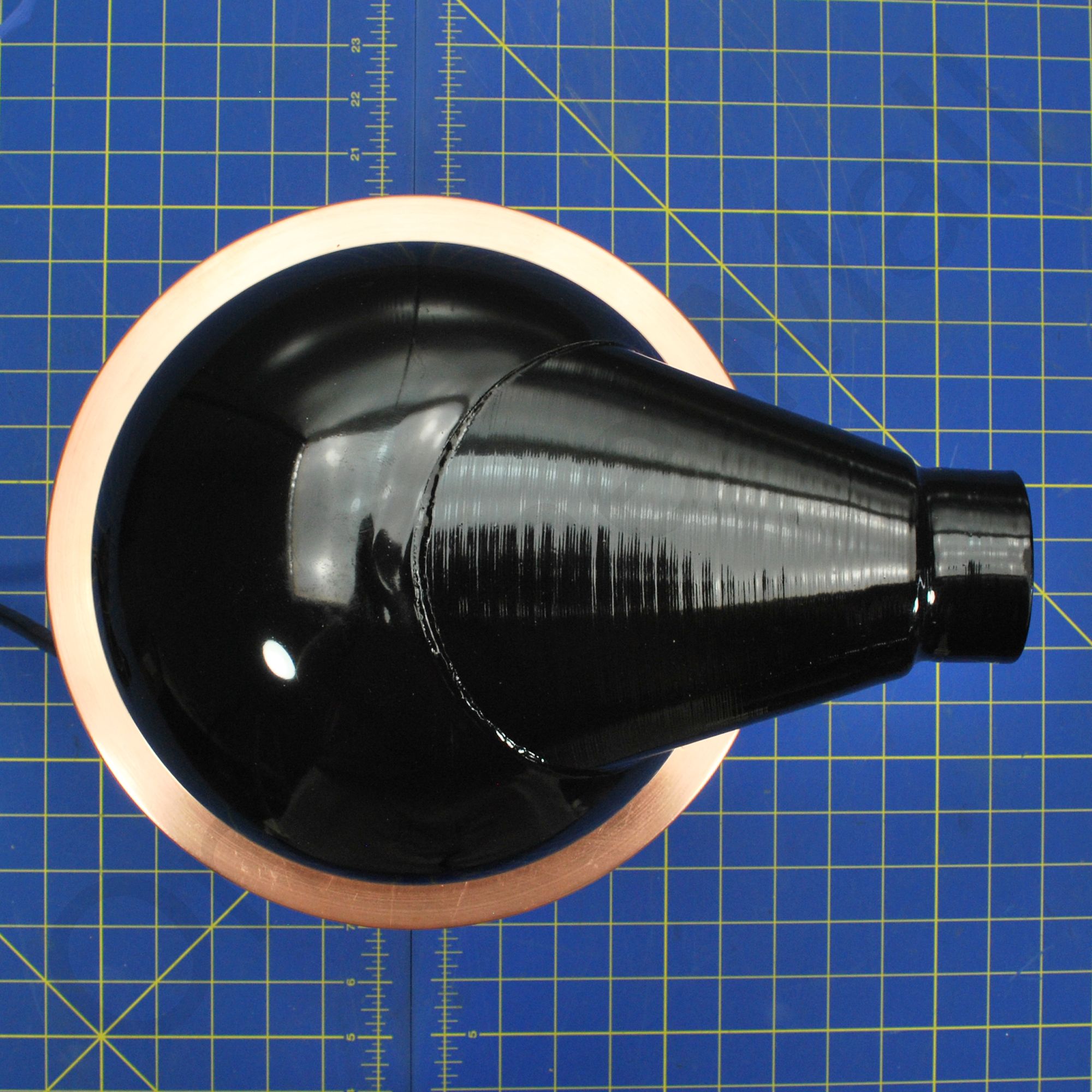

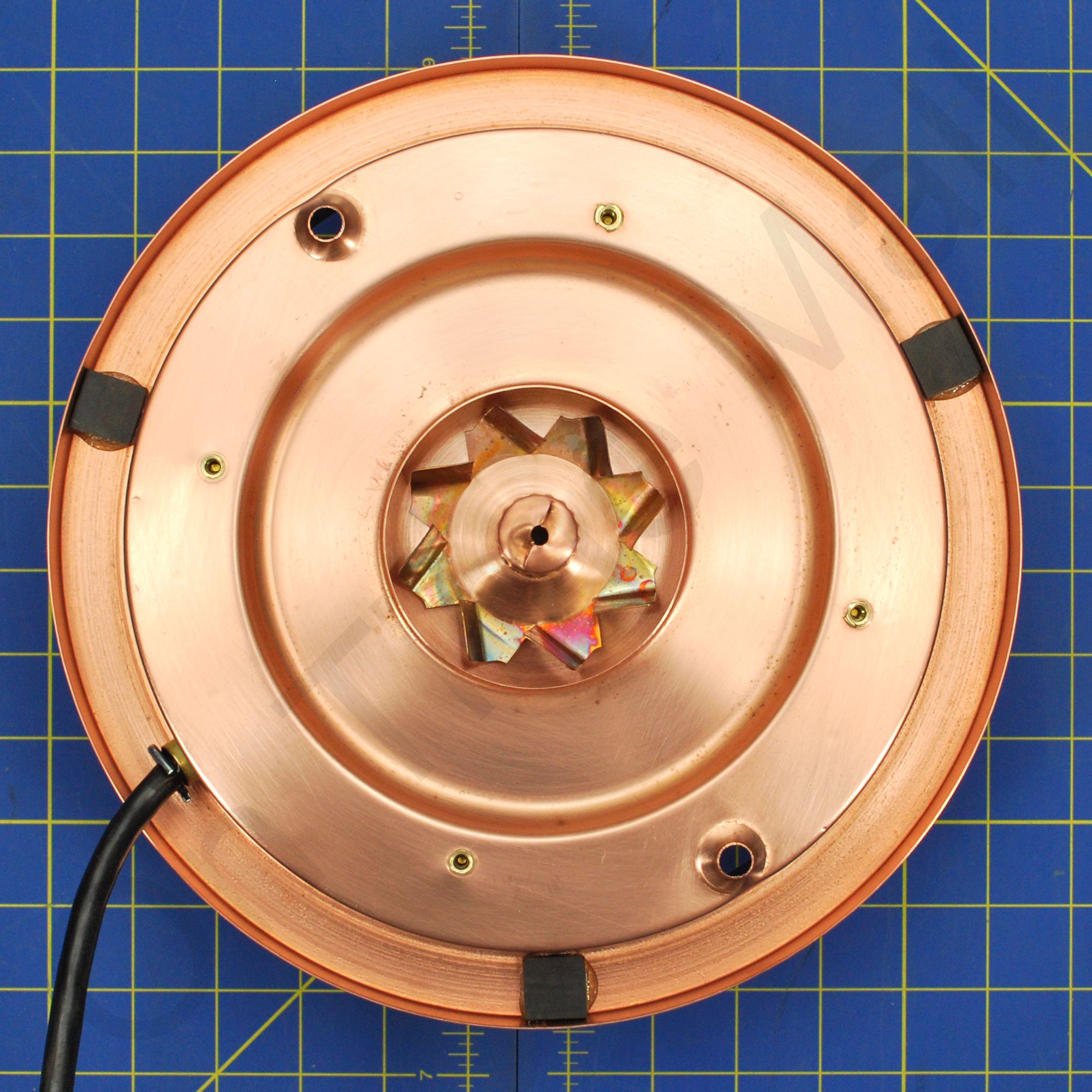

The Walton WF-HH-229 Atomizing Humidifier is a high speed centrifugal atomizing type rated at 2 pounds of water per hour. It is constructed of heavy gauge copper, brass and non-ferrous alloy. A heavy duty shaded pole motor with overload protection drives the centrifugal disc and pump assembly to draw water up from the seamless copper reservoir, against breaker combs, producing a finely atomized mist. Rotating parts are electronically balanced to eliminate vibration. An automatic float valve maintains water level in the reservoir. It is designed to be wall mounted to control the humidity in a lab or production area. The nozzle extension is intended to protrude through a wall in order to blow the mist into the next room. An example would be a humidor where the humidifier was mounted just outside the humidor and the mist would blow through the wall of the humidor by way of the nozzle extension. Air pressure in the humidity controled room and the room where the humidifier are located must be equal for this to work.

Specifications

Voltage:
115
Capacity:
2 Pounds Per HR
Height:
11.5 Inches
Diameter:
10.25 Inches
Operating Weight:
25 LBS
Water Connection Supply:
1/8 in. male pipe thread
Water Connection Overflow:
1/4 in. female pipe thread
Operating Pressure Range:
10-100 psig.
