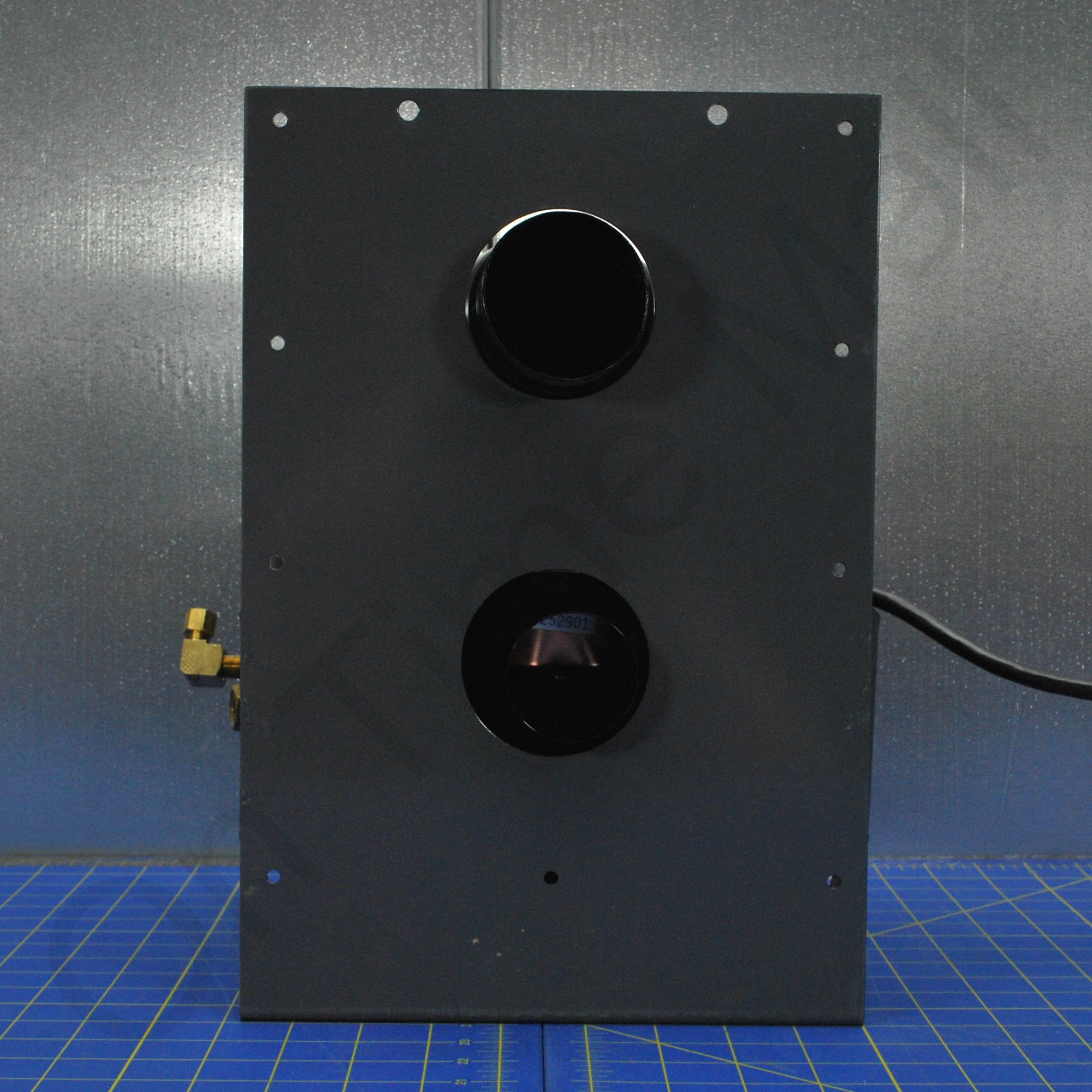

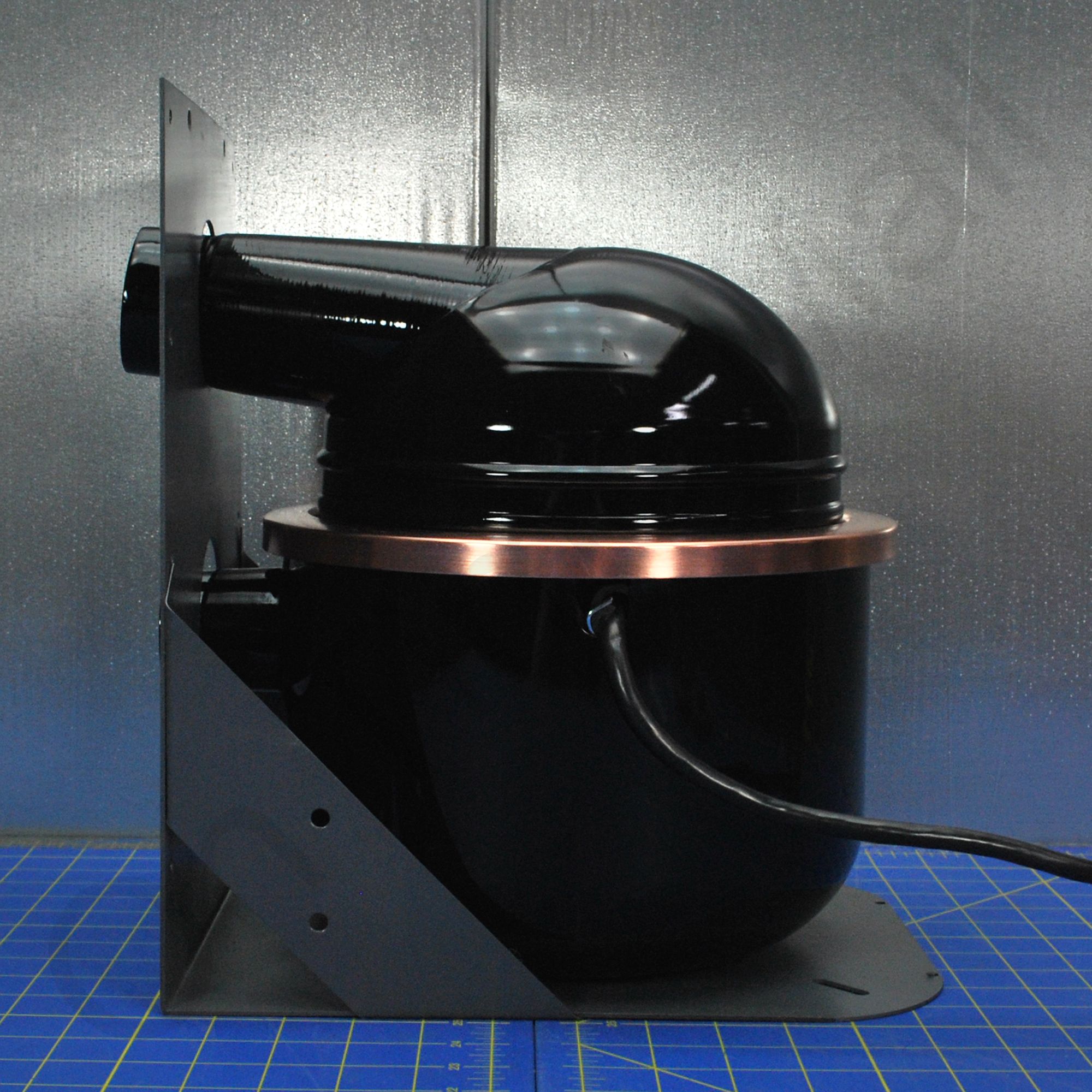

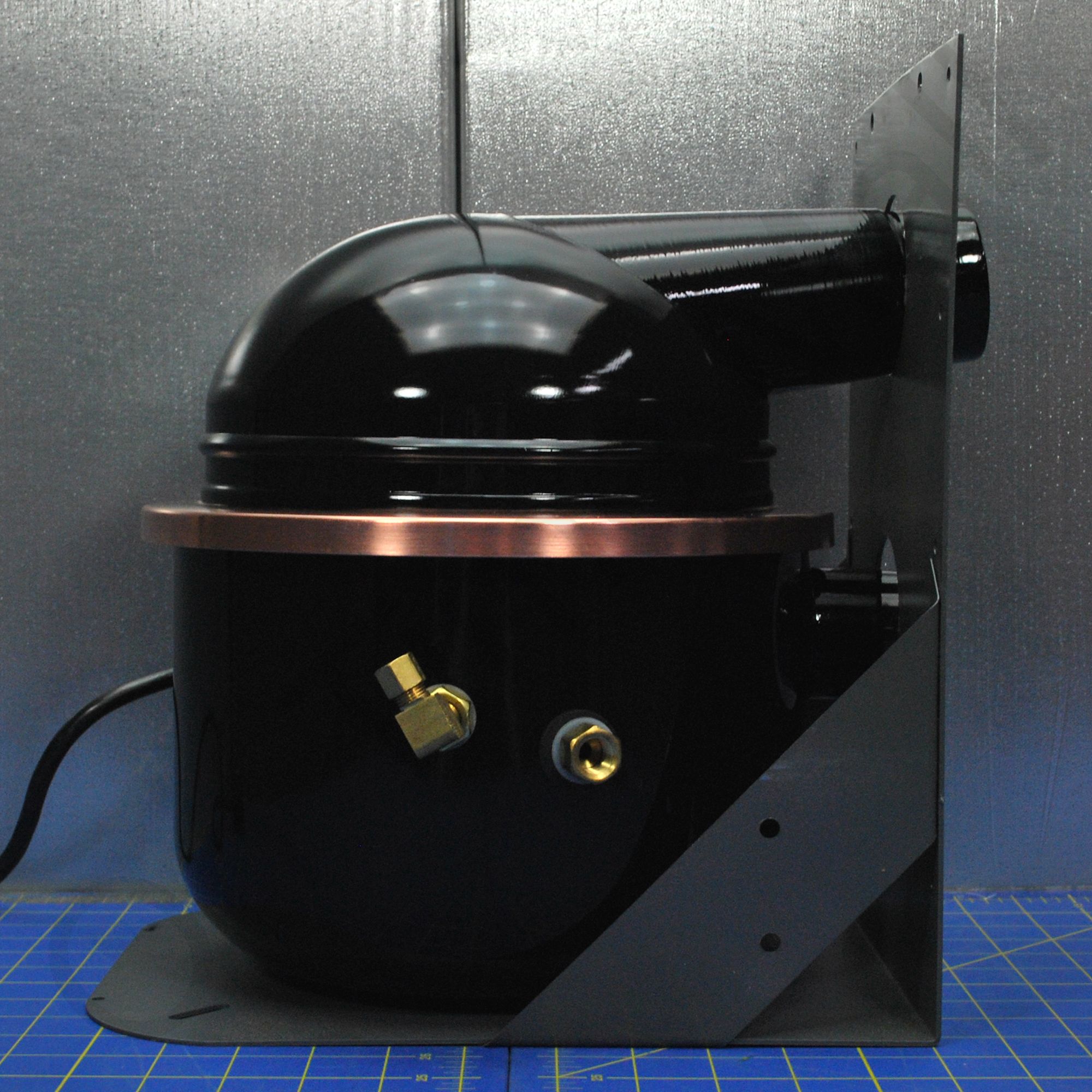

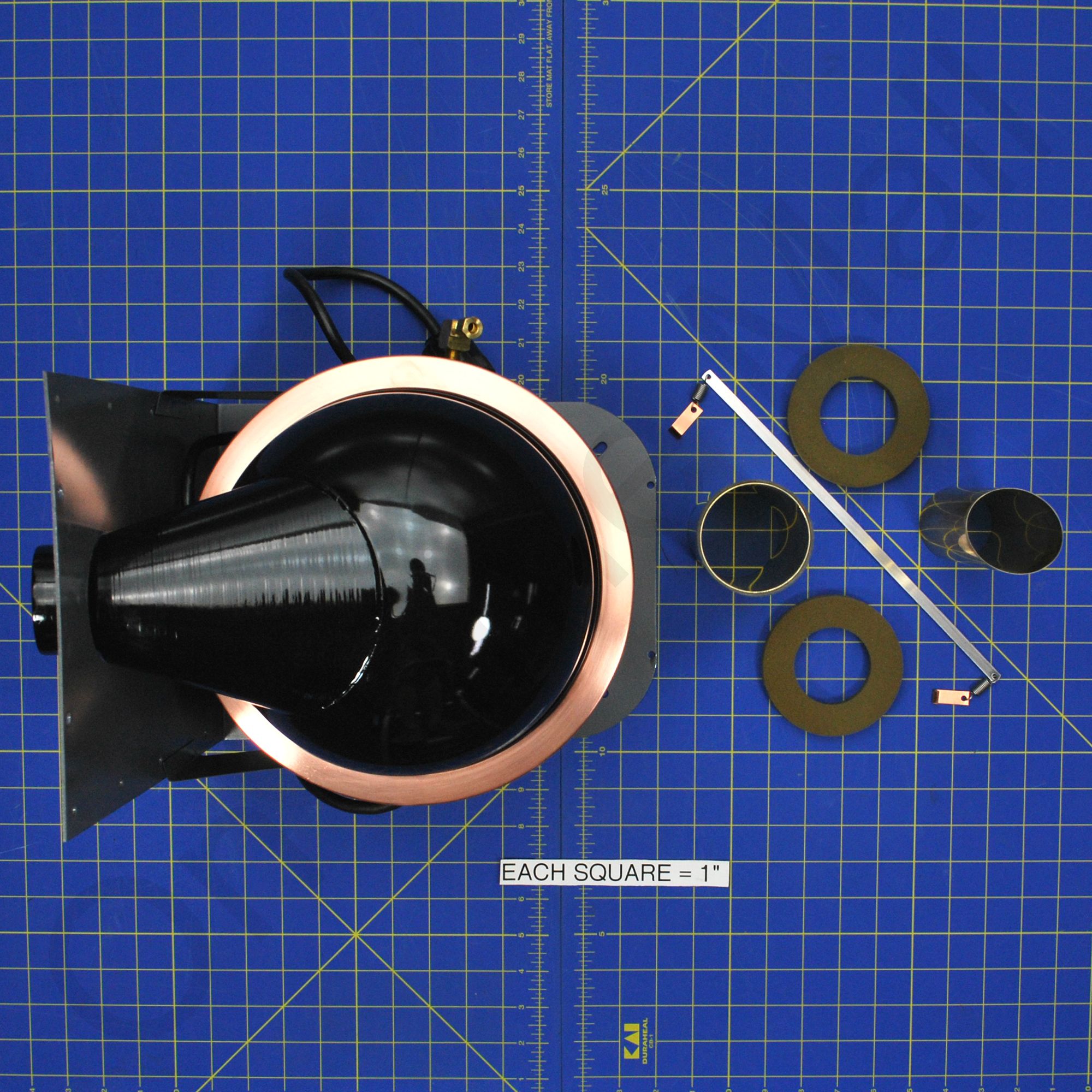

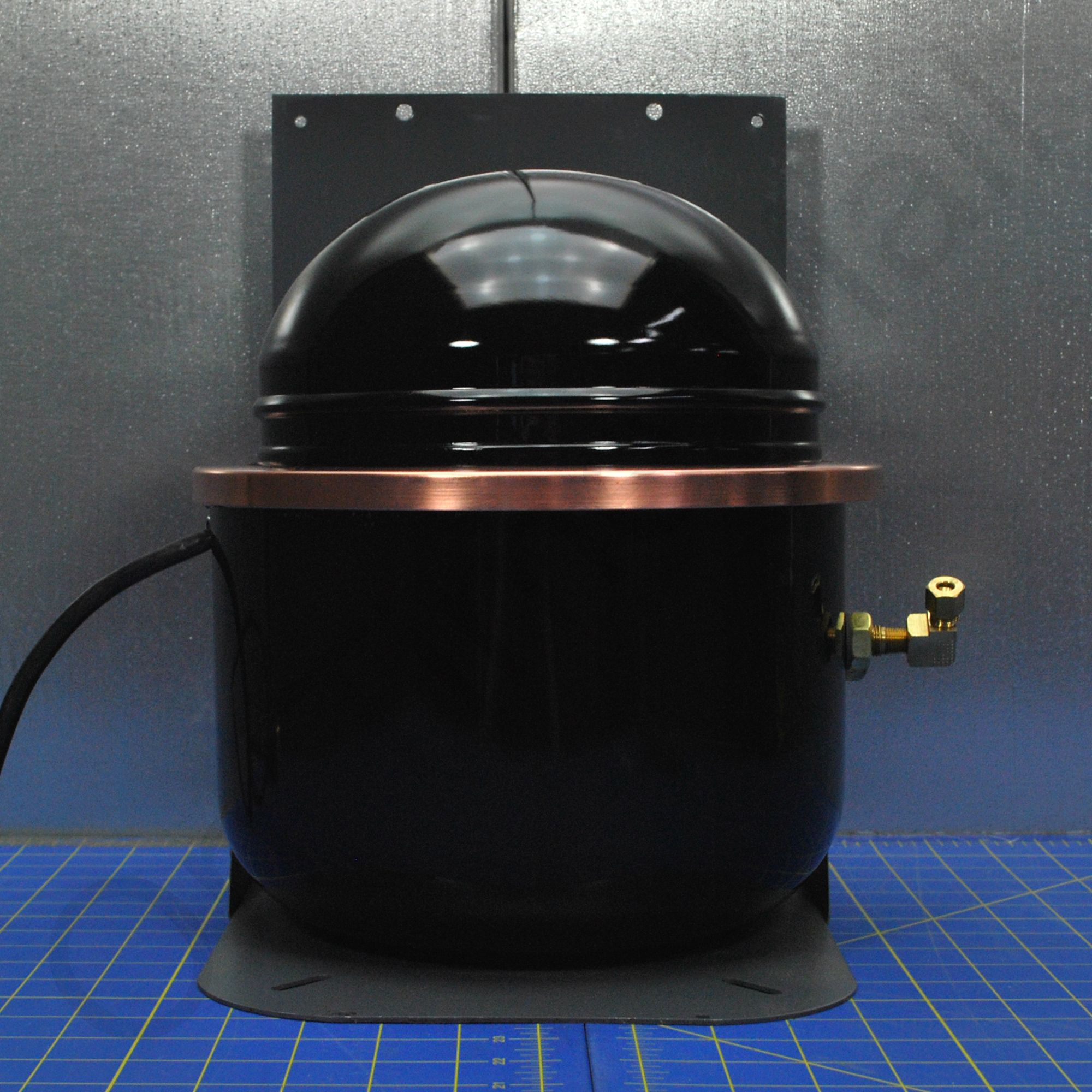

Walton WF-HP-226 Atomizing Humidifier
SKU#: WFHP226
List Price: $11,999.99
Sale Price: $11,999.99
|
Product Description

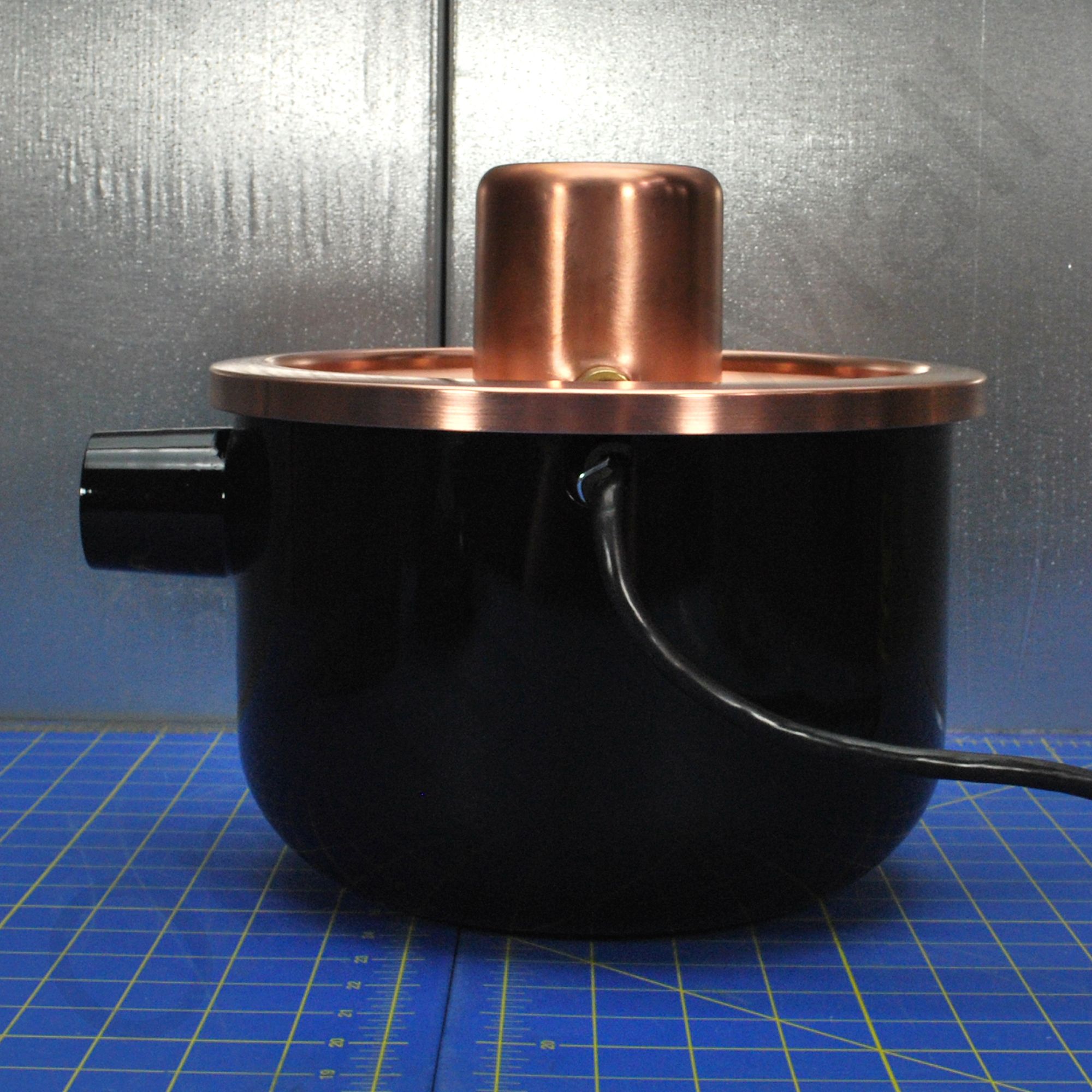

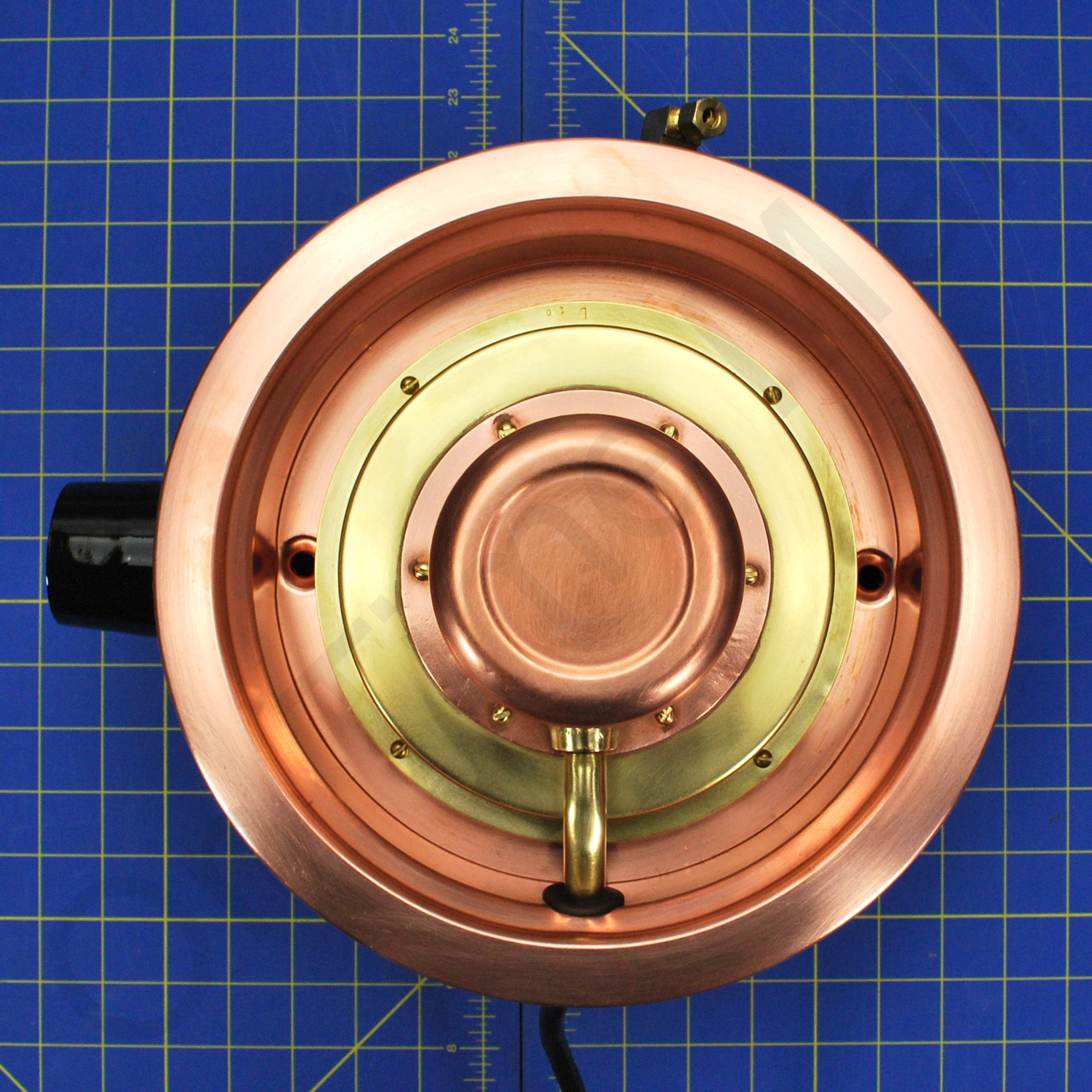

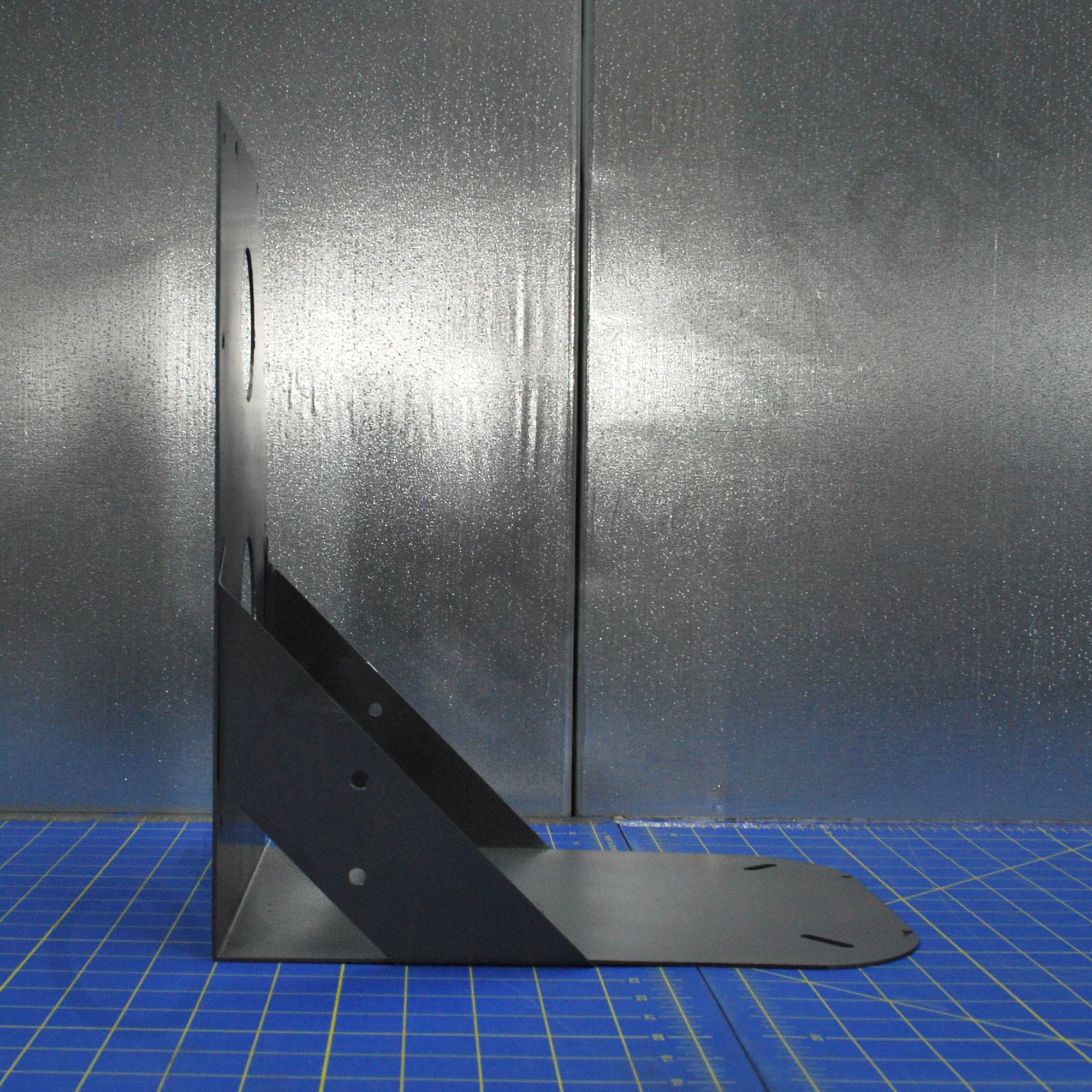

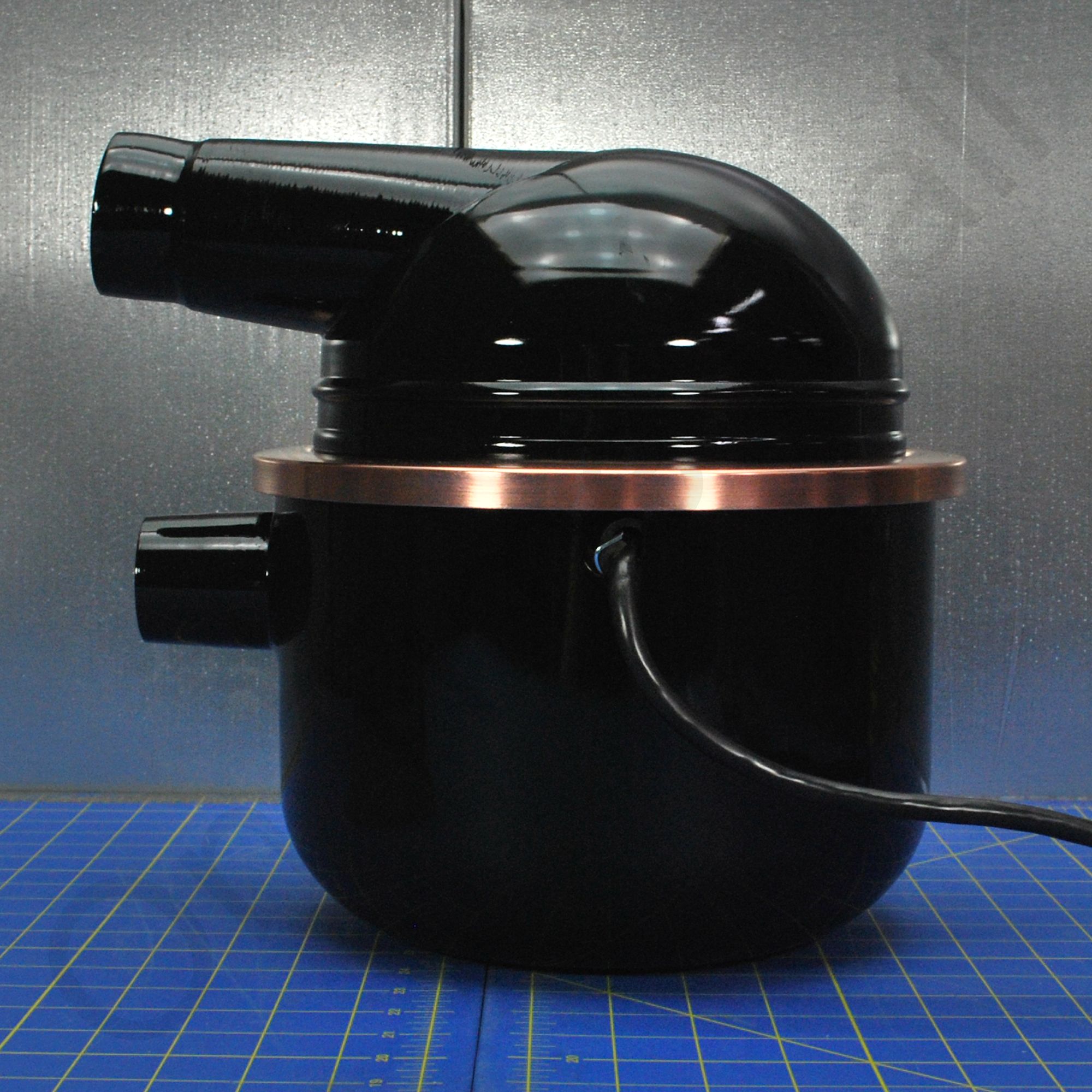

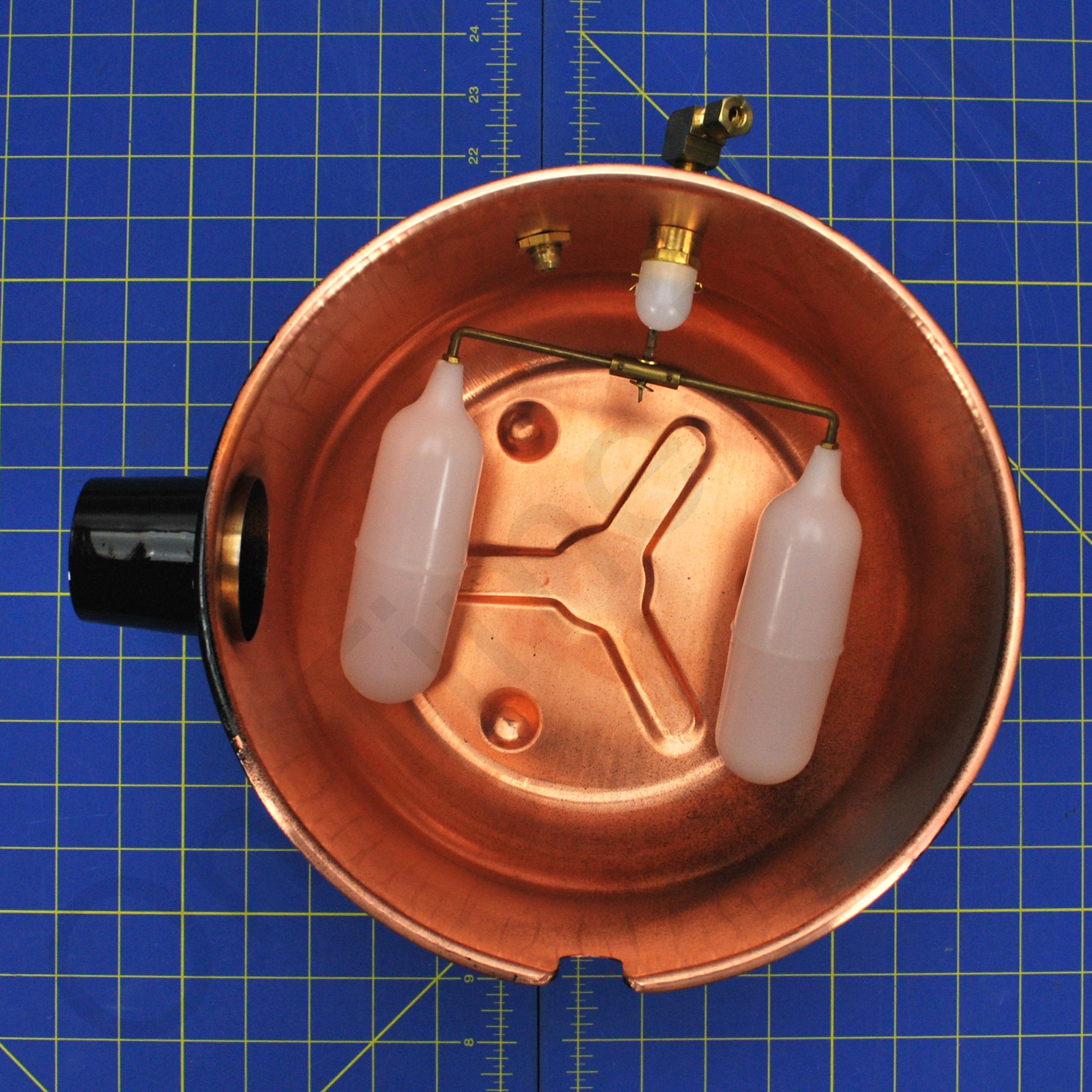

The Walton WF-HP-226 Atomizing Humidifier is a high speed centrifugal atomizing type rated at 2 pounds of water per hour. It is constructed of heavy gauge copper, brass and non-ferrous alloy. A heavy duty shaded pole motor with overload protection drives the centrifugal disc and pump assembly to draw water up from the seamless copper reservoir, against breaker combs, producing a finely atomized mist. Rotating parts are electronically balanced to eliminate vibration. An automatic float valve maintains water level in the reservoir. It is designed to be duct mounted to blow the mist into the SUPPLY air duct system as long as the supply duct static air pressure is below .25 inches. NOTE: This item is obsolete and no longer available.
Owners Manual & Maintenance Information
Specifications
- Voltage:
- 115
- Capacity:
- 3 Pounds Per HR
- Height:
- 11.5 Inches
- Diameter:
- 10.25 Inches
- Operating Weight:
- 20 LBS
