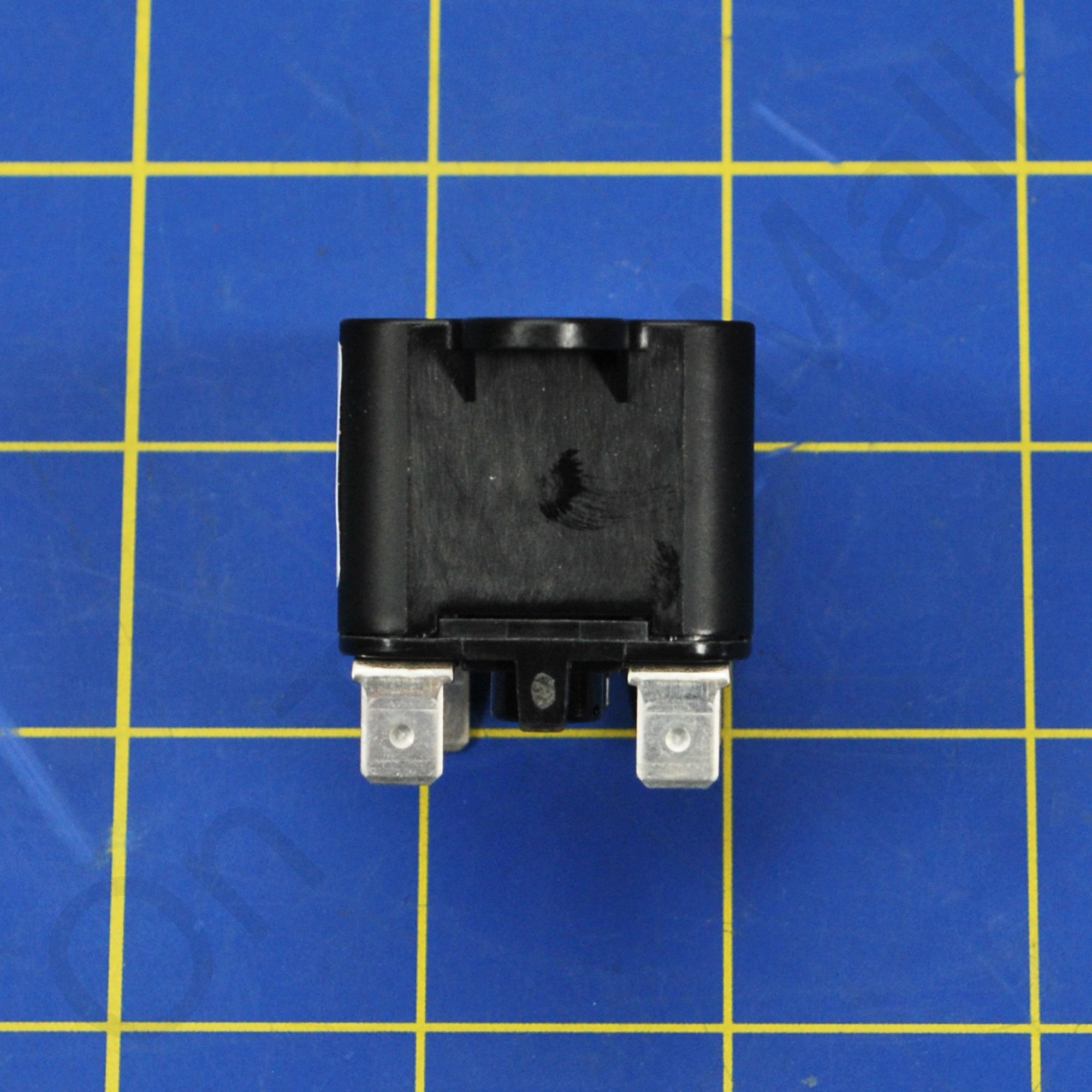

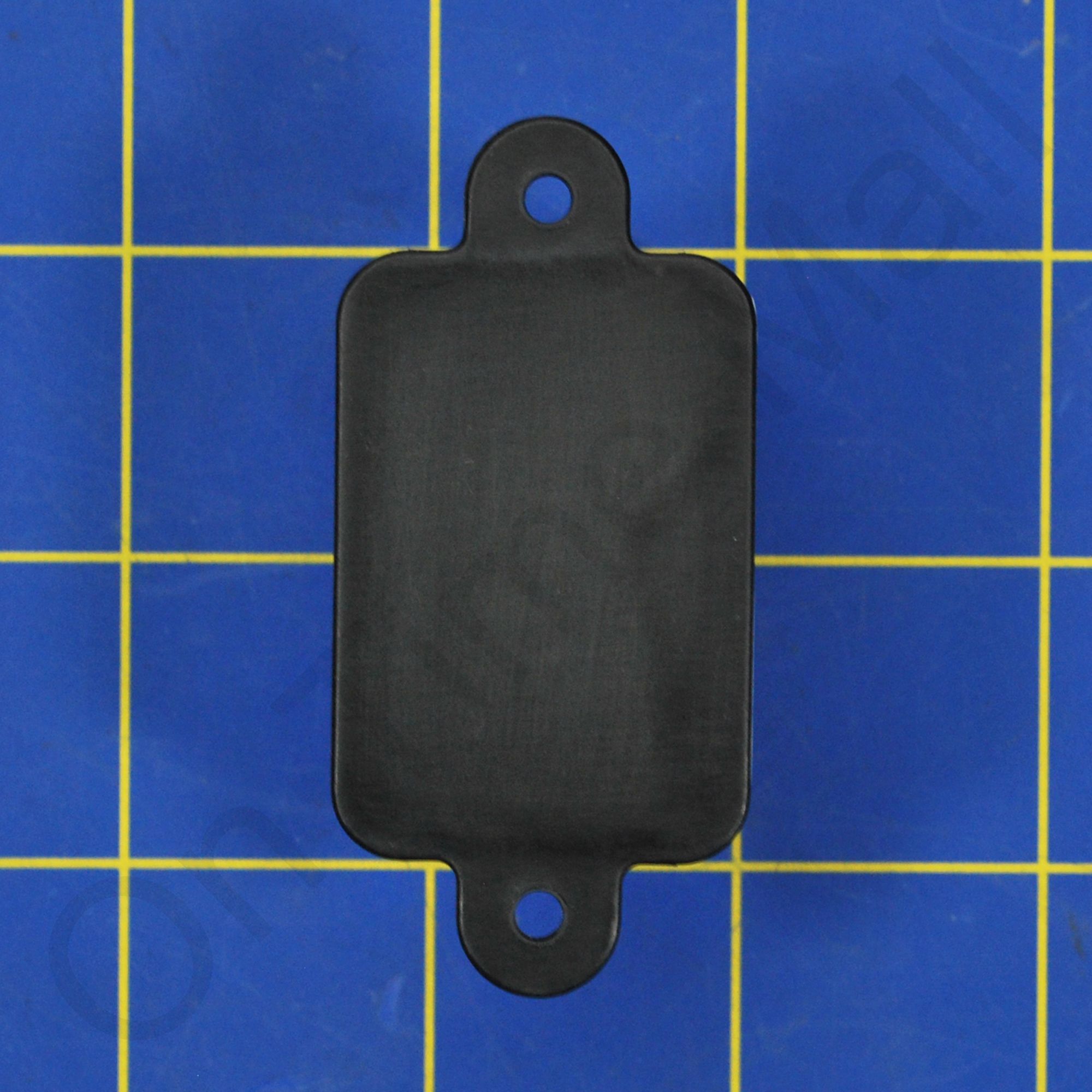

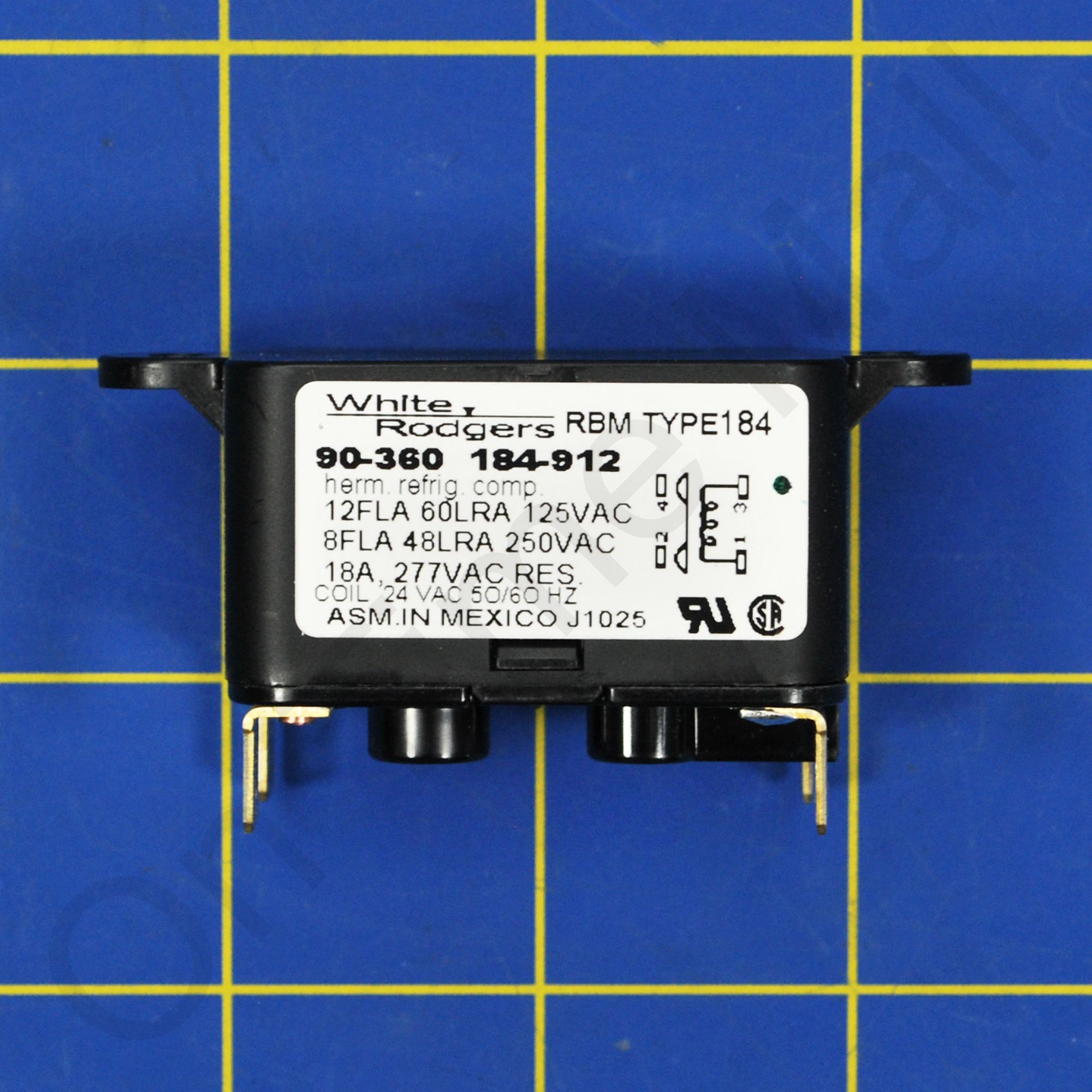

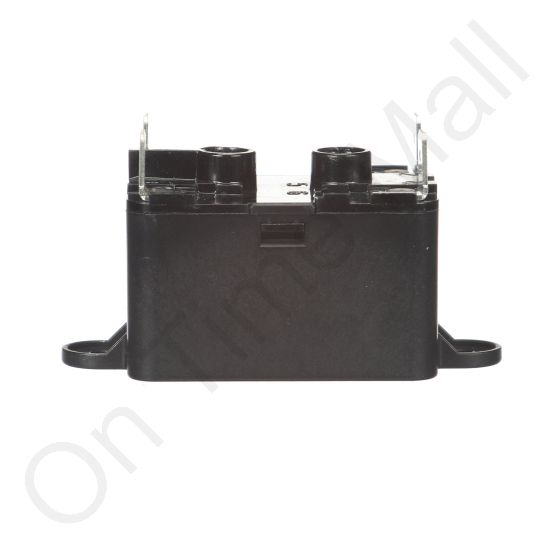

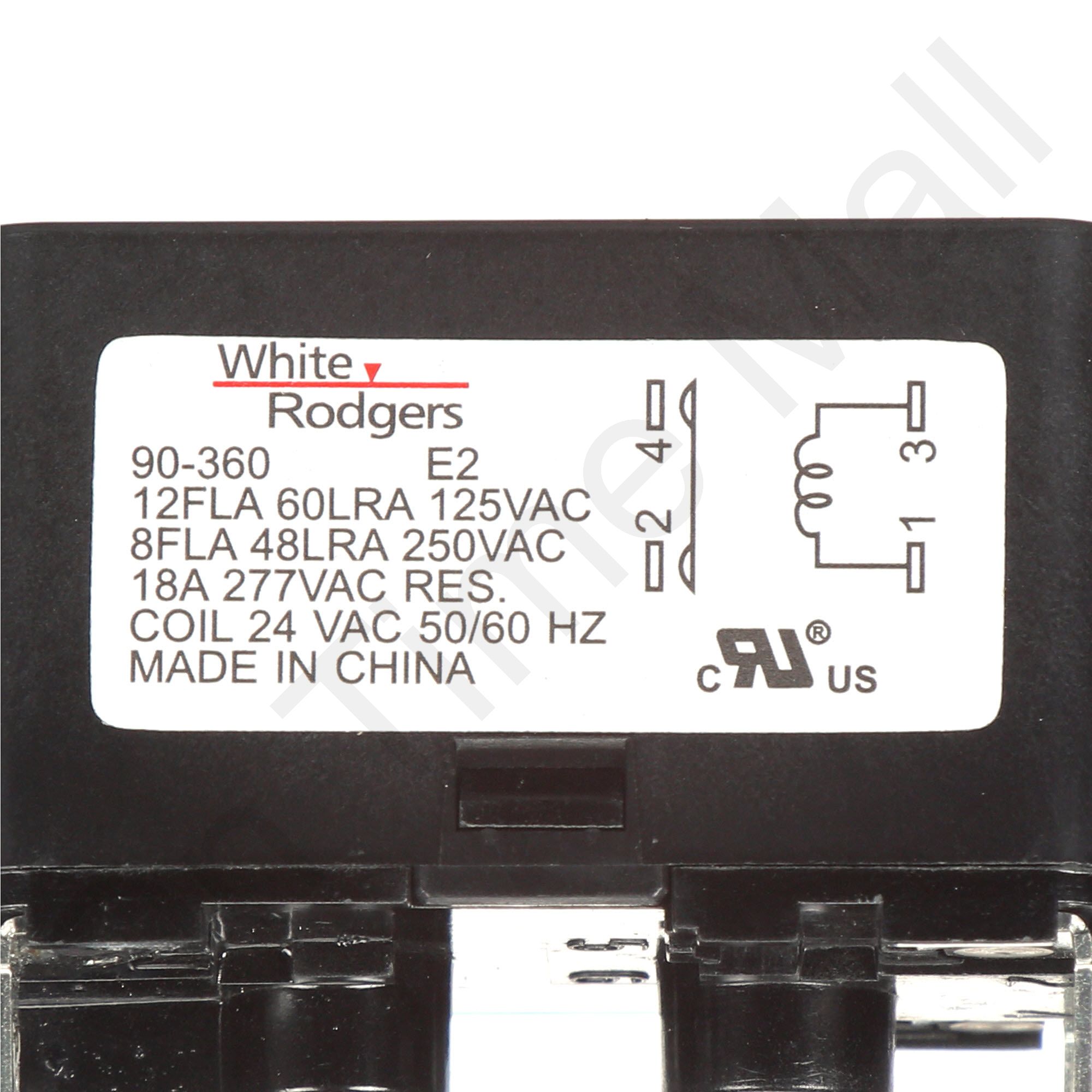

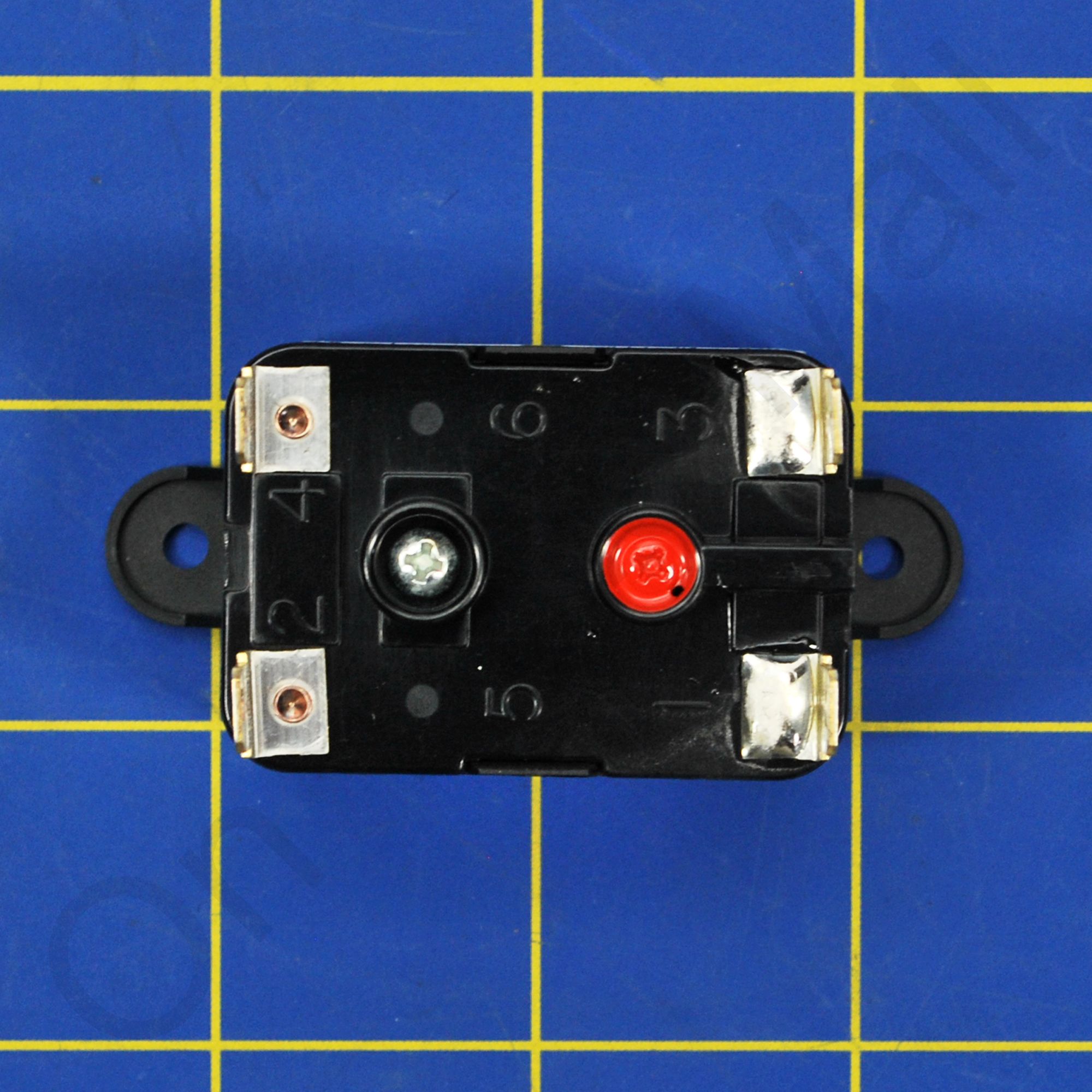

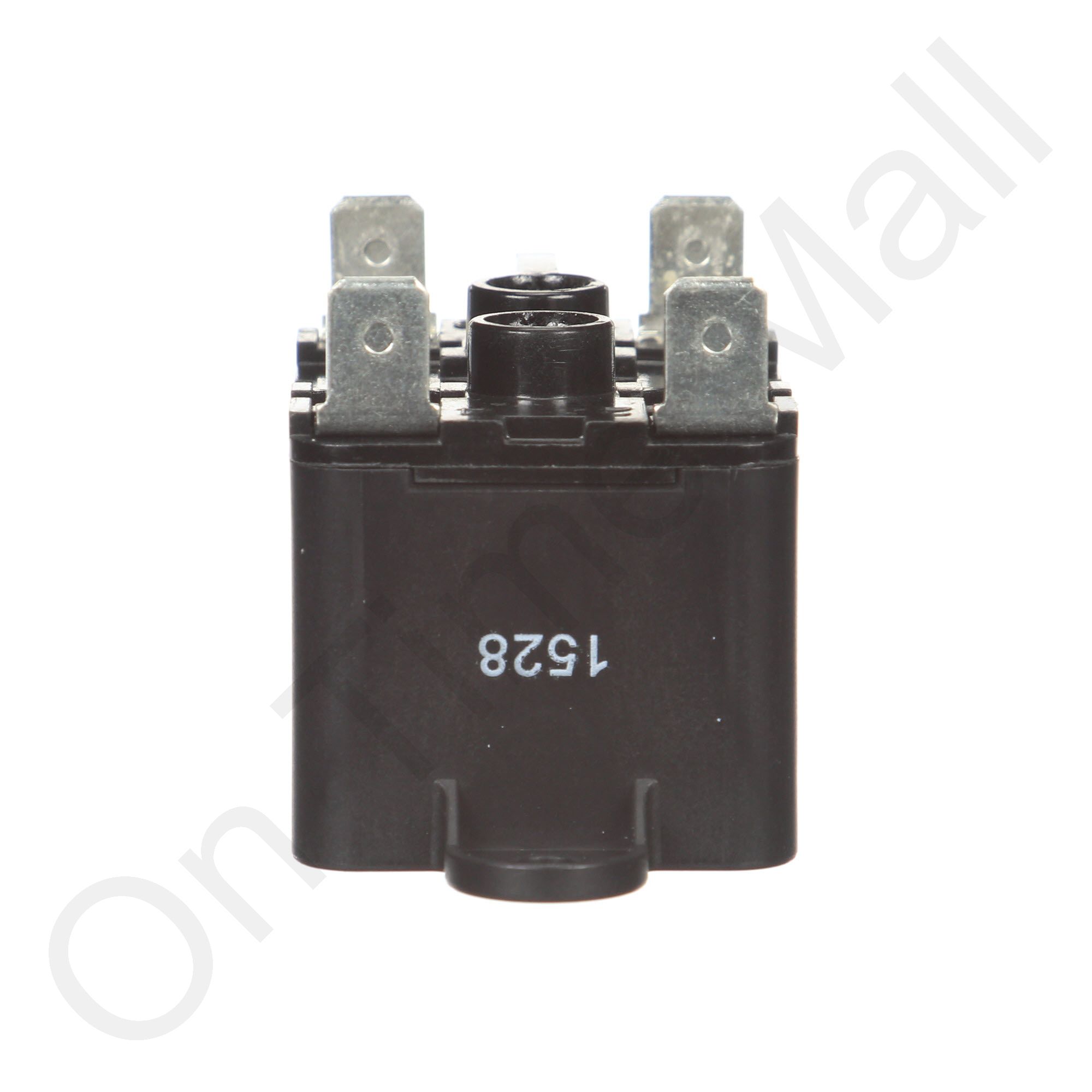

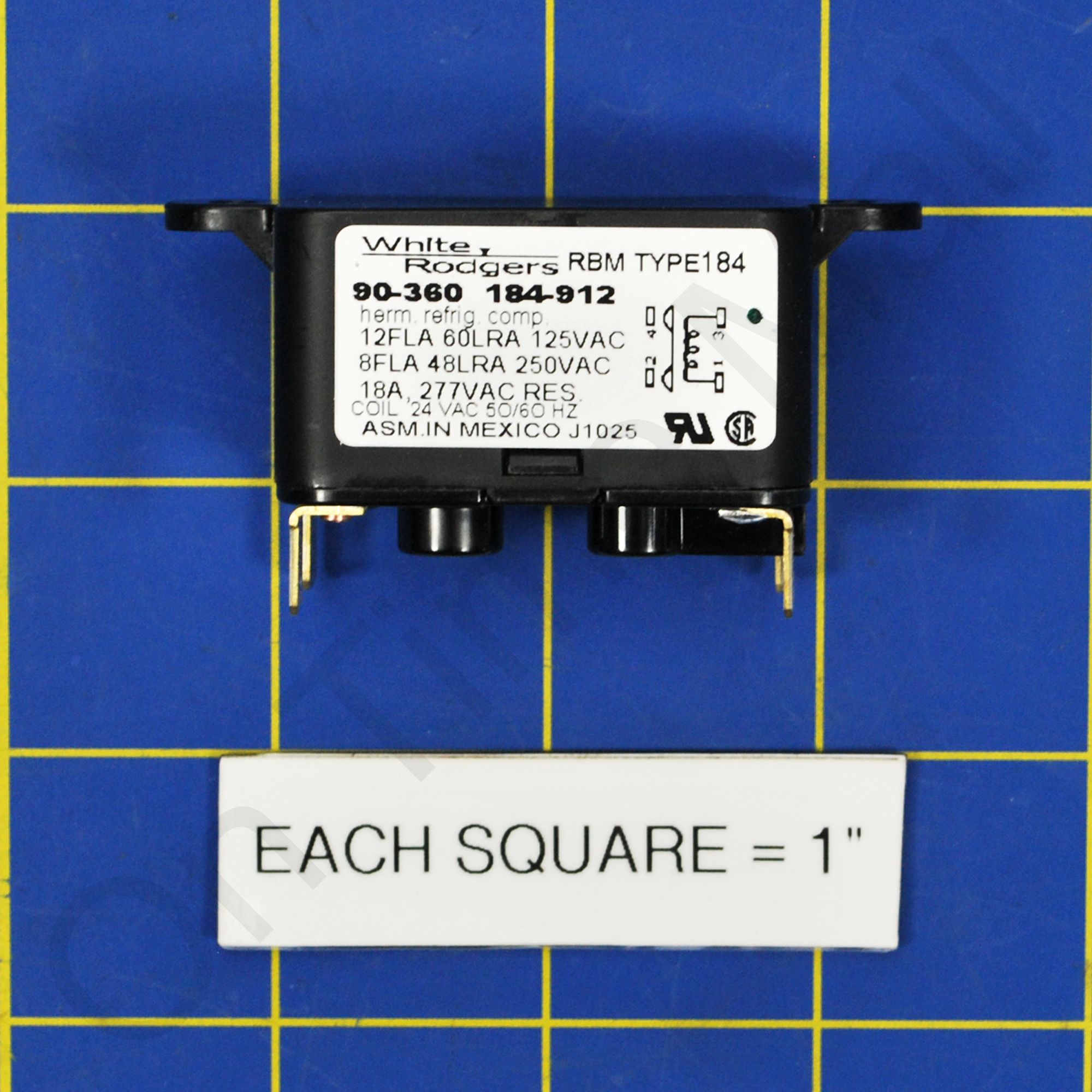

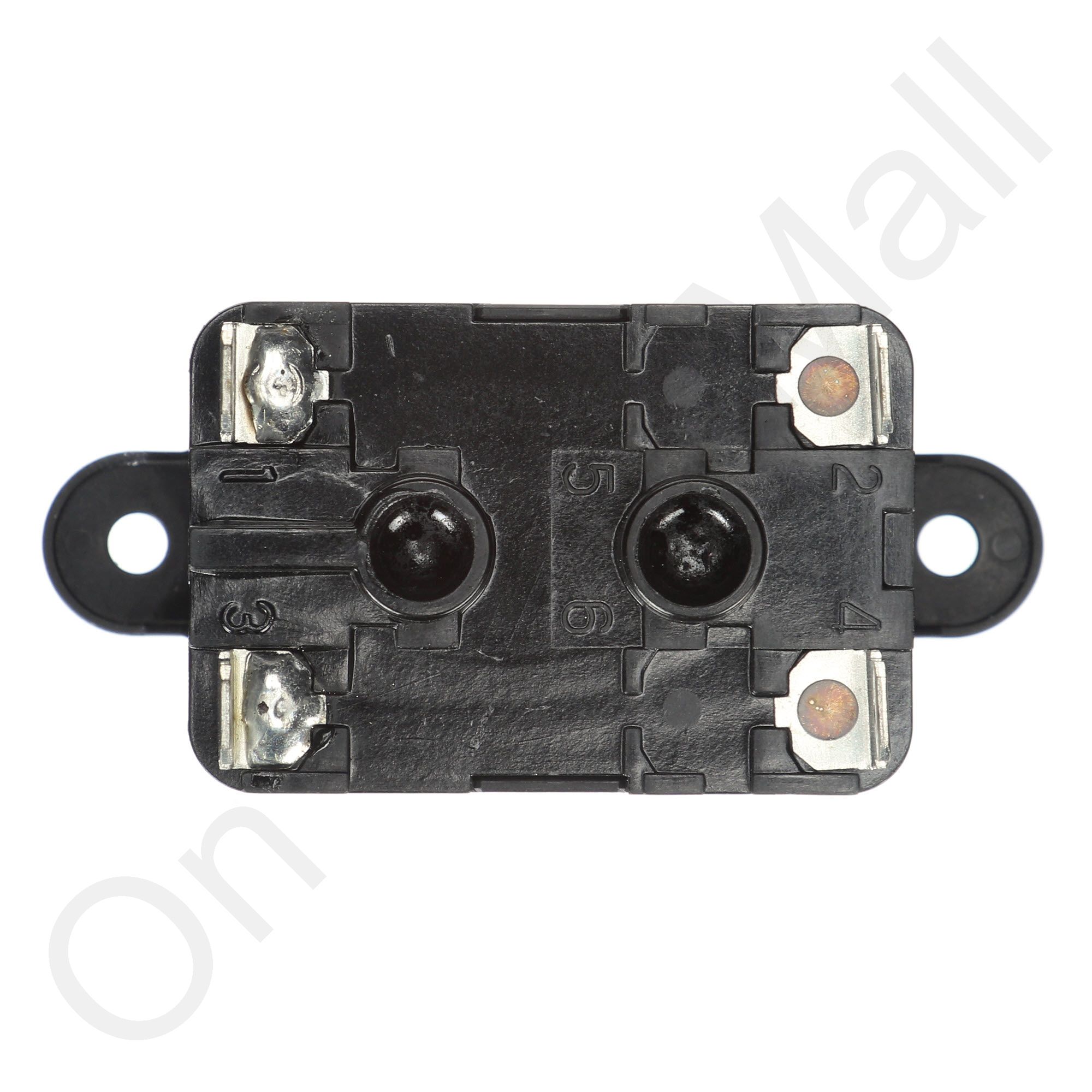

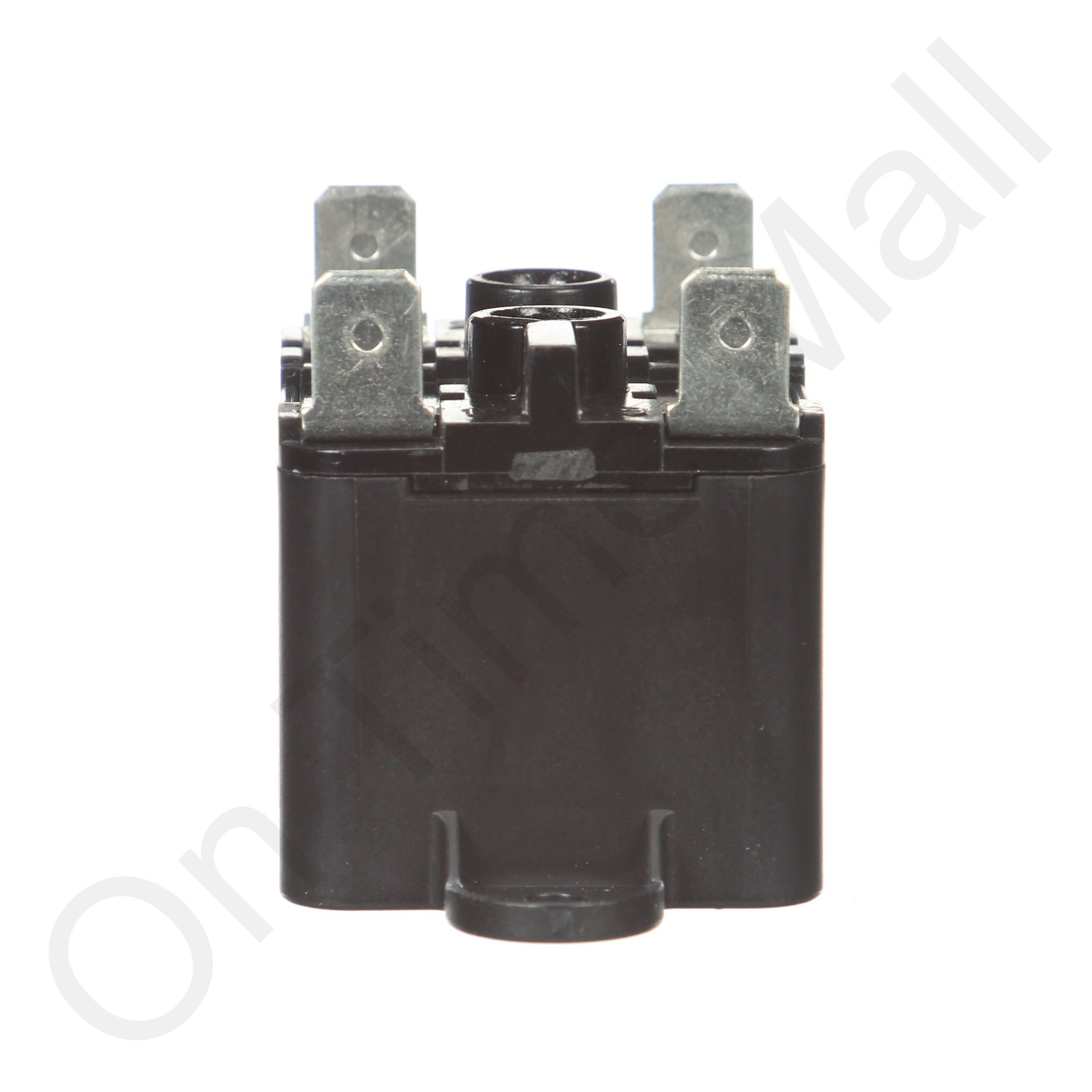

White Rodgers 90-360 Fan Relay
SKU
90360
Brand
White Rodgers
$14.80
Need Help
Assistance Available
Easy Returns
Quick & Hassle Fee
Guaranteed Fit
Always the correct part
Overview
White Rodgers 90-360 Fan Relay. Compact, totally enclosed design. For heating and cooling applications and general switching. Quiet, reliable and economical. Temperature Range. . . . . . . . –40°F to 150°F Mechanical Life (no load). . . . 1 ,000,000 operations, 120 operations/min. Electrical Life (rated load). . . 1 00,000 operations, 6 operations/min. Load test making inrush rating (0.4 to 0.5 P.F.); breaking 100% continuous rating (0.65 to 0.8 P.F.) Weight (approximate). . . . . . 2.3 oz. Agency . . . . . . . . . . . . U.L. file number E12139 or E22381 C.S.A. file number LR13360 Coils, Frequency . . . . . . . . 50/60 Hz Coils, Insulation . . . . . . . Class B Coils, Termination . . . . . . . 1/4” Quick Connect Coils, Operate . . . . . . . . . 85% of nominal coil voltage; 1 0% maximum safe operate Coils, Duty Cycle . . . . . . . Continuous Replaces: White Rodgers 184-20102-101
Specifications
| Manufacturer | White Rodgers |
|---|---|
| Product Length | 2.625 inches (6.668 cm) |
| Product Width | 1.5 inches (3.810 cm) |
| Product Height | 1.25 inches (3.175 cm) |
| Product Weight | 0.15 lbs (0.068 kg) |
| Country of Origin | China |
| Shipping Length | 3.25 inches (8.255 cm) |
| Shipping Width | 2 inches (5.080 cm) |
| Shipping Height | 2 inches (5.080 cm) |
